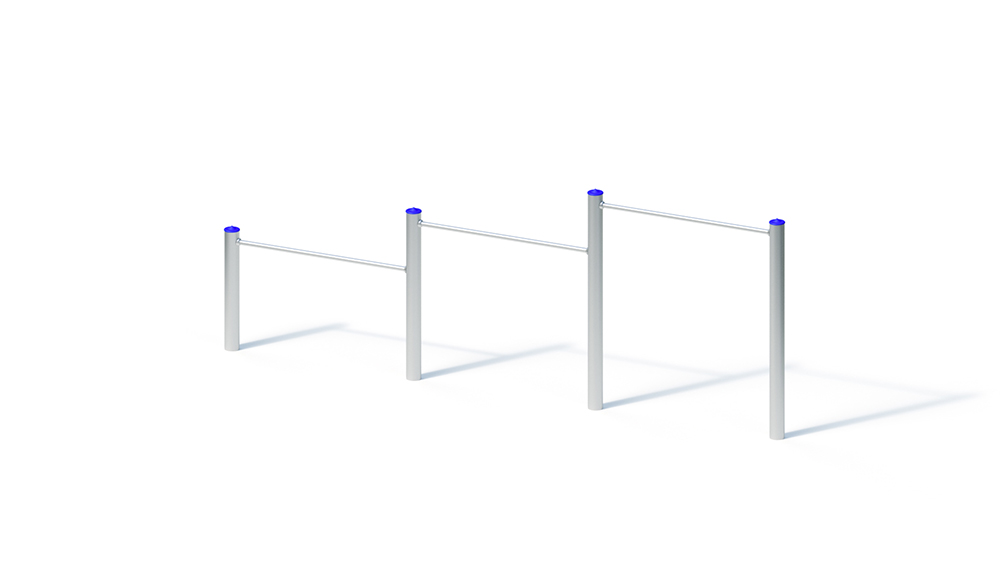

Step bar (0.90 / 1.30 / 1.70)
Key Attributes
Age Group
3+
Area of Use
Public Playgrounds
Activity
Sport
Suitable for
Suitable for
children from 3 years,
public playgrounds etc.,
sporting activities
Techincal Specifications
Lifting Device
-
Total Length
4.95 m
Total Width
-
Total Height
1.85 m
Minimum Space Length
8.10 m
Minimum Space Width
3.45 m
Minimum Space Height
1.85 m
Heaviest Single Piece
22.00 kg
(Total) Weight
87.00 kg
Free Height of Fall
1.72 m
Platform Heights
-
Foundations
Foundation 1
4 pieces - 0.60 x 0.50 x 0.50 m volume: 0.15 m3
Foundation 2
-
Foundation 3
-
Foundation 4
-
Foundation 5
-
Foundation 6
-
Assembly
Number of Installers
1 person
Assembly Time
1 h
Assembly Details
Assembly time 1 fitter every 1 hour (without foundation creation)
Technical Data
Technical data
Length: 4.95 m
Minimum space: 8.10 x 3.45 m (26 m²)
Total height: 1.85 m
Bar height : 0.90 / 1.30 / 1.70 m
Weight: 22 kg Heaviest individual part,
87 kg a total of
Support
posts Support posts made of stainless steel tube Ø 120 mm, wall thickness 3 mm, covered with non-detachable post caps made of stainless steel
Add-on parts,
horizontal bar made of stainless steel tube, Ø 38 mm, wall thickness 2.5 mm, twist-proof
Metal
components : stainless steel 1.4301 The modular add-on parts transfer their forces directly into the support posts via a special adapter attachment.
The screw connections are secured against unauthorized loosening.
Foundations (on site)
4 pcs. 0.50 x 0.60 x 0.50 m
amount of concrete: 0.60 m³
Free fall height
1.72 m
