0-53212-900

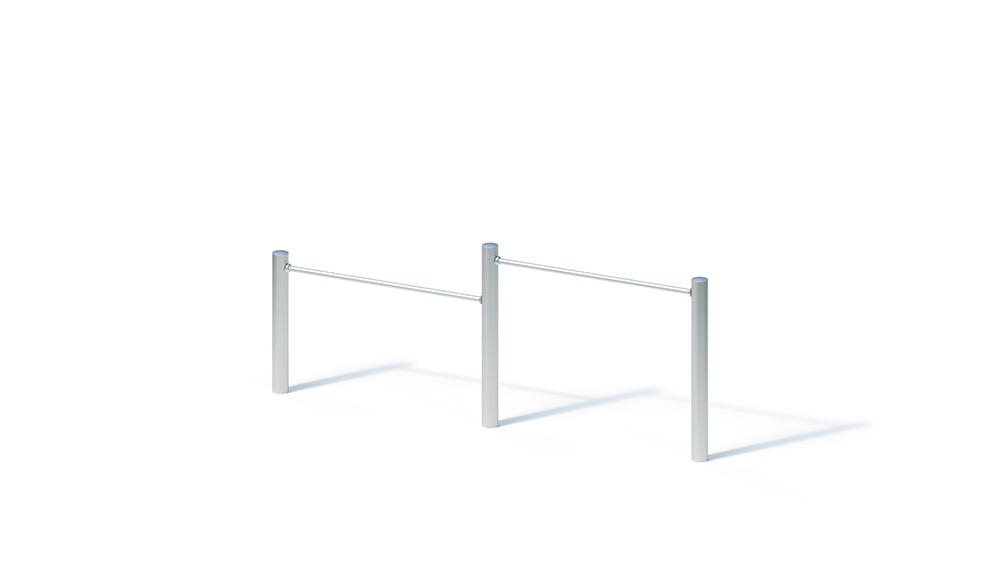

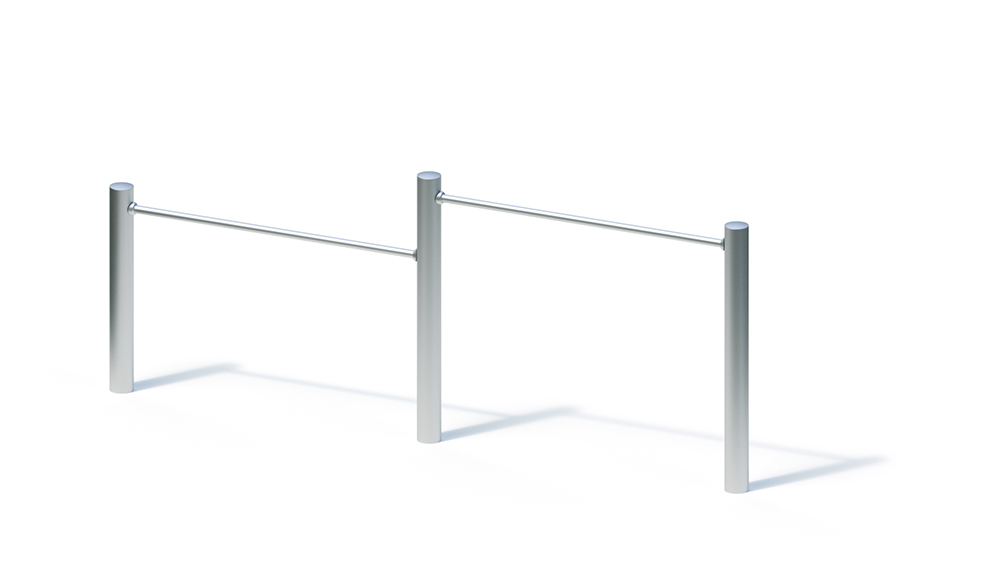

Step bar (0.90 / 1.20)

Key Attributes

Age Group

3+

Area of Use

Public Playgrounds

Activity

Sport

Suitable for

Suitable for
children from 3 years,
public playgrounds etc.,
sporting activities

Techincal Specifications

Lifting Device

-

Total Length

3.35 m

Total Width

3.55 m

Total Height

1.35 m

Minimum Space Length

6.35 m

Minimum Space Width

3.15 m

Minimum Space Height

1.35 m

Heaviest Single Piece

18.00 kg

(Total) Weight

57.00 kg

Free Height of Fall

1.22 m

Platform Heights

-

Foundations

Foundation 1

3 pieces - 0.50 x 0.50 x 0.50 m volume: 0.13 m3

Foundation 2

-

Foundation 3

-

Foundation 4

-

Foundation 5

-

Foundation 6

-

Assembly

Number of Installers

1 person

Assembly Time

1 h

Assembly Details

Assembly time 1 fitter every 1 hour (without foundation creation)

Technical Data

Technical data
Length: 3.35 m
Minimum space: 6.35 x 3.15 m (22 m²)
Total height: 1.35 m
Bar height : 0.90 / 1.20 m
Weight: 18 kg heaviest individual part
57 kg in total

Support
posts Support posts made of stainless steel tube Ø 114 mm, wall thickness 3 mm, covered with welded caps made of stainless steel.

Add-on parts,
horizontal bar made of stainless steel tube, Ø 38 mm, wall thickness 2.5 mm, twist-proof

Metal
components : stainless steel The modular add-on parts introduce their forces directly into the support posts via a special adapter attachment.
The screw connections are secured against unauthorized loosening.

Foundations (on site)
3 pcs. 0.50 x 0.50 x 0.50 m
amount of concrete: 0.45 m³

Free fall height
1.22 m
