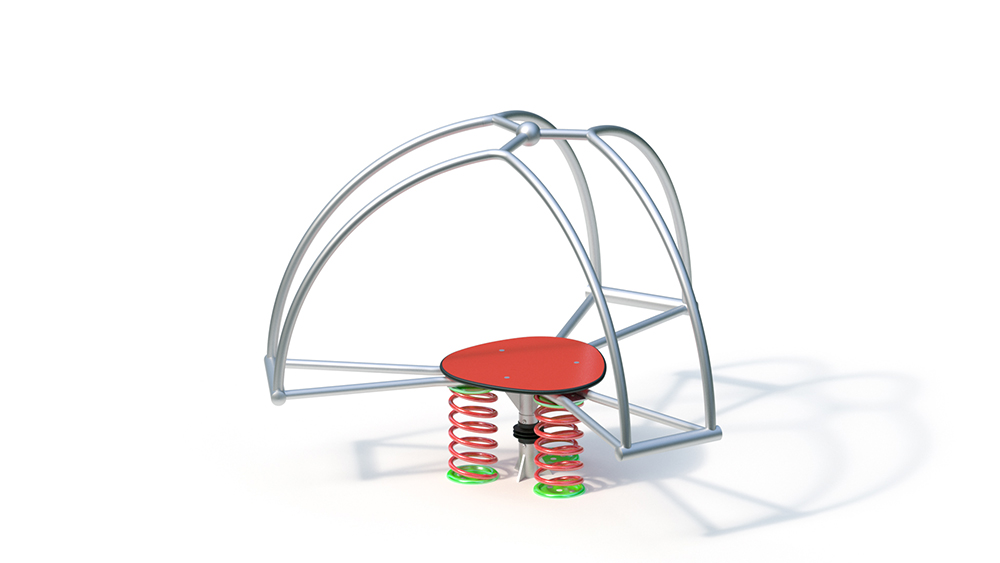

Standing seesaw
Key Attributes
Age Group
4+
Area of Use
Public Playgrounds
Activity
Physical
Suitable for
Suitable for
children from 4 years,
public playgrounds etc.,
exercise activities.
Techincal Specifications
Lifting Device
-
Total Length
2.05 m
Total Width
1.75 m
Total Height
1.50 m
Minimum Space Length
5.06 m
Minimum Space Width
5.06 m
Minimum Space Height
1.50 m
Heaviest Single Piece
-
(Total) Weight
175.00 kg
Free Height of Fall
0.95 m
Platform Heights
-
Foundations
Foundation 1
1 piece - 1.20 x 1.20 x 0.10 m volume: 0.15 m3
Foundation 2
-
Foundation 3
-
Foundation 4
-
Foundation 5
-
Foundation 6
-
Assembly
Number of Installers
1 person
Assembly Time
1 h
Assembly Details
Assembly time 1 fitter 1 hour (without foundation creation)
Technical Data
Technical data
Floor area: 1.75 x 2.05 m
Minimum space: Ø 5.06 m (20 m²)
Headroom: approx. 0.45 m
Weight: 175 kg in total
Rocker frame: stainless steel
Rocker spring: special spring wire Ø 20 mm
HPL laminate board , 20 mm; theft-proof screw connection
standpipe with non-slip knurling.
Support bearing: spherical head plain bearing
Foundation (on site)
1 pc. 1.20 x 1.20 x 0.10 m
amount of concrete: 0.14 m³
Free fall height
0.95 m
Please note:
Under all playground equipment that causes a forced movement of the user (e.g. swings, slides, seesaw devices, cable cars, carousels, etc.), shock-absorbing floors must be provided over the entire impact area.
