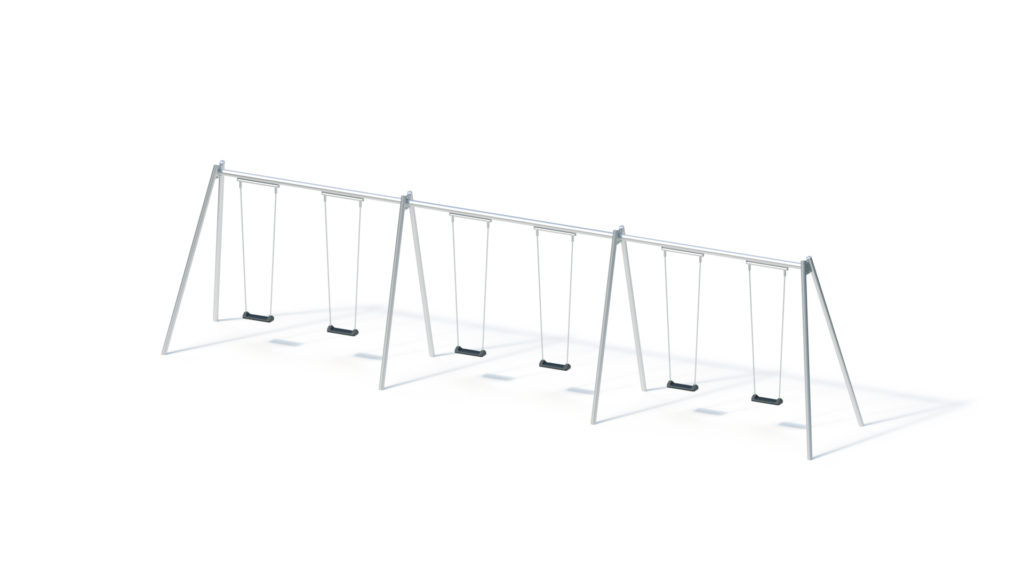

Standard swing combination (2.50) stainless steel

5+

public playgrounds

Swings

Suitable for
children from 5 years,
public playgrounds etc.,
physical activities

-

10.40 m

1.75 m

2.71 m

10.40 m

8.05 m

2.71 m

40.00 kg

330.00 kg

1.50 m

-

8 pieces - 0.70 x 0.50 x 0.50 m volume: 0.18 m3

-

-

-

-

-

2 pers.

3 h

Assembly time 2 fitters each 3 hours (without foundation creation)

Technical data
Floor area: 1.75 x 10.40 m
Minimum space: 8.05 x 10.40 m
Swing height: 2.50 m
Weight: 40 kg Heaviest individual part
330 kg in total

– Swing supports made of stainless steel 1.4301, Ø 76 mm, wall thickness 2.9 mm; Connection to swing carrier via connection
plates – swing carrier made of stainless steel 1.4301, Ø 88.9 mm, wall thickness 3.2 mm; Connection to rocking
supports via connection plates – swing axis made of stainless steel, consisting of an internal bearing axis Ø 28 mm made of solid material, outer tube Ø 42.4 mm with 2 mm wall thickness and slide bearings
– trapezoidal chain suspension consisting of stainless steel chains Ø 7 mm, with integrated, ball-bearing swivel to a To prevent the chains from knotting
– on the swing axis and on the swing seat: chain attachment with clamping adapter made of stainless steel
– safety swing seats made of rubber with dimensionally stable aluminum insert and seamless single-point suspension

Foundations (on site)
8 pcs. 0.50 x 0.70 x 0.50 m

Free fall height
1.50 m
