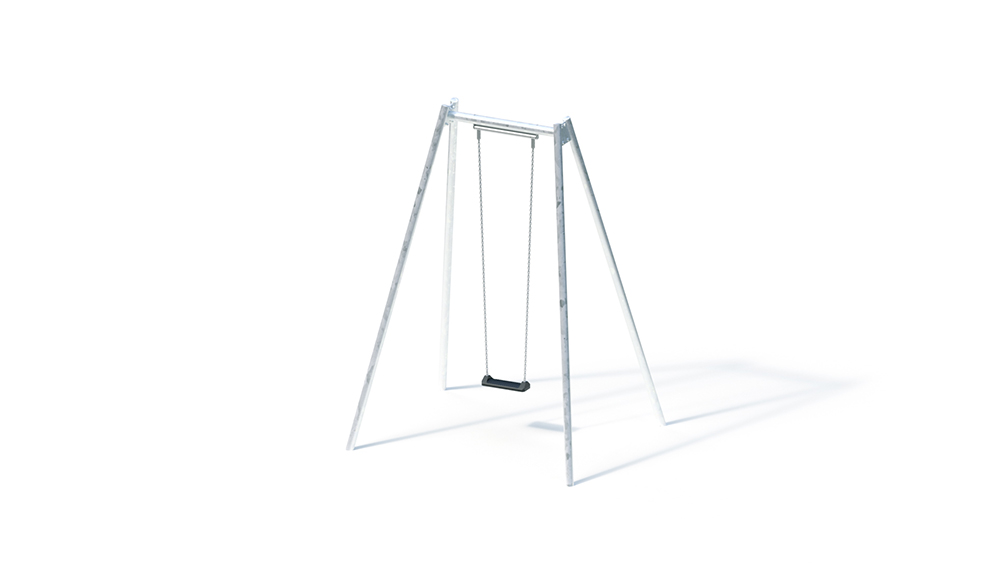

Standard swing (3.00) steel – hot-dip galvanized

5+

public playgrounds

Swings

Suitable for
children from 5 years,
public playgrounds etc.,
physical activities

-

2.40 m

2.05 m

3.21 m

8.80 m

2.40 m

3.21 m

25.00 kg

125.00 kg

1.80 m

-

4 pieces - 0.80 x 0.60 x 0.60 m volume: 0.29 m3

-

-

-

-

-

2 pers.

2 h

Assembly time 2 fitters each 1.5 hours (without foundation creation)

Technical data
Floor area: 2.05 x 2.40 m
Minimum space: 8.80 x 2.40 m (16 m²)
Swing height: 3.00 m
Weight: 25 kg Heaviest single part
125 kg in total

– Steel rocking supports, Ø 76 mm, wall thickness 2.9 mm, hot-dip galvanized; Connection to swing carrier via connection plates
– swing carrier made of steel, Ø 88.9 mm, wall thickness 3.2 mm, hot-dip galvanized; Connection to rocking
supports via connection plates – swing axis made of stainless steel, consisting of an internal bearing axis Ø 28 mm made of solid material, outer tube Ø 42.4 mm with 2 mm wall thickness and slide bearings
– trapezoidal chain suspension consisting of stainless steel chains Ø 7 mm, with integrated, ball-bearing swivel to a To prevent the chains
from knotting – safety
swing seat made of rubber with dimensionally stable aluminum insert and seamless single-point suspension – on the swing axis and on the swing seat: chain attachment with clamp adapter made of stainless steel

Foundations (on site)
4 pcs. 0.60 x 0.80 x 0.60 m
Amount of concrete: 1.15 m³

Free fall height
1.80 m
