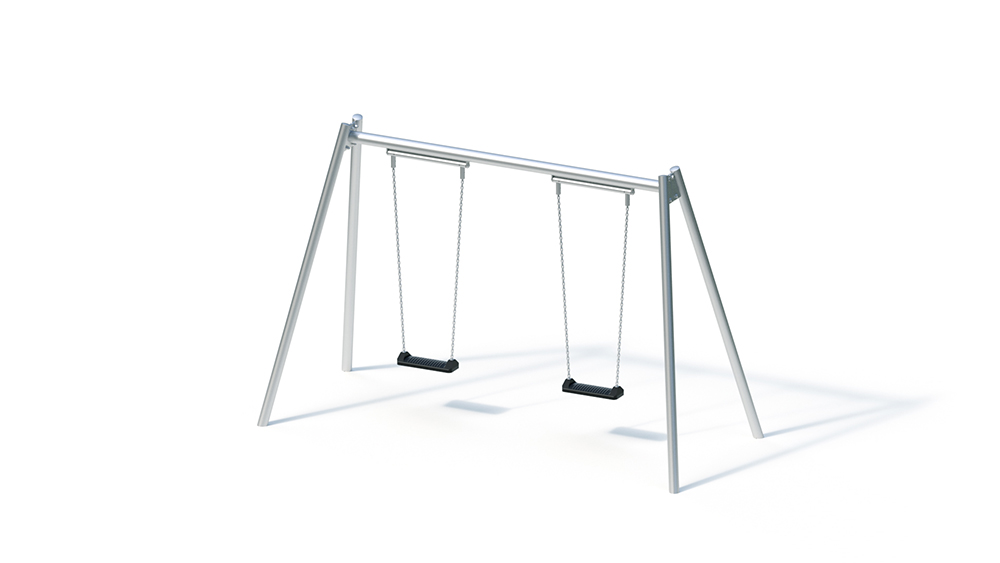

Standard swing (2.00) stainless steel

Key Attributes

Age Group


Area of Use

public playgrounds


Physical activity

Suitable for

Suitable for
children from 3 years,
public playgrounds, etc.,
exercise activities

Techincal Specifications

Lifting Device


Total Length

3.45 m

Total Width

1.50 m

Total Height

2.21 m

Minimum Space Length

7.30 m

Minimum Space Width

3.45 m

Minimum Space Height

2.21 m

Heaviest Single Piece

36.00 kg

(Total) Weight

120.00 kg

Free Height of Fall

1.25 m

Platform Heights



Foundation 1

4 pieces - 0.60 x 0.60 x 0.47 m volume: 0.17 m3

Foundation 2


Foundation 3


Foundation 4


Foundation 5


Foundation 6



Number of Installers

2 pers.

Assembly Time

2 h

Assembly Details

Assembly time 2 fitters each 1.5 hours (without foundation creation)

Technical Data

Technical data
Floor area: 3.45 x 1.50 m
Minimum space: 3.45 x 7.30 m (23 m²)
Swing height: 2.00 m
Weight: 36 kg Heaviest single part
120 kg in total

– Rocking supports made of stainless steel tube Ø 76 mm, wall thickness 2.9 mm; Connection to swing carrier via connection
plates – swing carrier made of stainless steel tube Ø 88.9 mm, wall thickness 3.2 mm; Connection to rocking
supports via connection plates – swing axis made of stainless steel, consisting of an internal bearing axis Ø 28 mm made of solid material, outer tube Ø 42.4 mm with 2 mm wall thickness and slide bearings
– trapezoidal chain suspension consisting of stainless steel chains Ø 7 mm, with integrated, ball-bearing swivel to a To prevent the chains
from knotting – safety
swing seat made of rubber with dimensionally stable aluminum insert and seamless single-point suspension – on the swing axis and on the swing seat: chain attachment with clamp adapter made of stainless steel

Foundations (on site)
4 pcs. 0.60 x 0.60 x 0.47 m
Amount of concrete: 0.68 m³

Free fall height
1.25 m
