0-40552-000

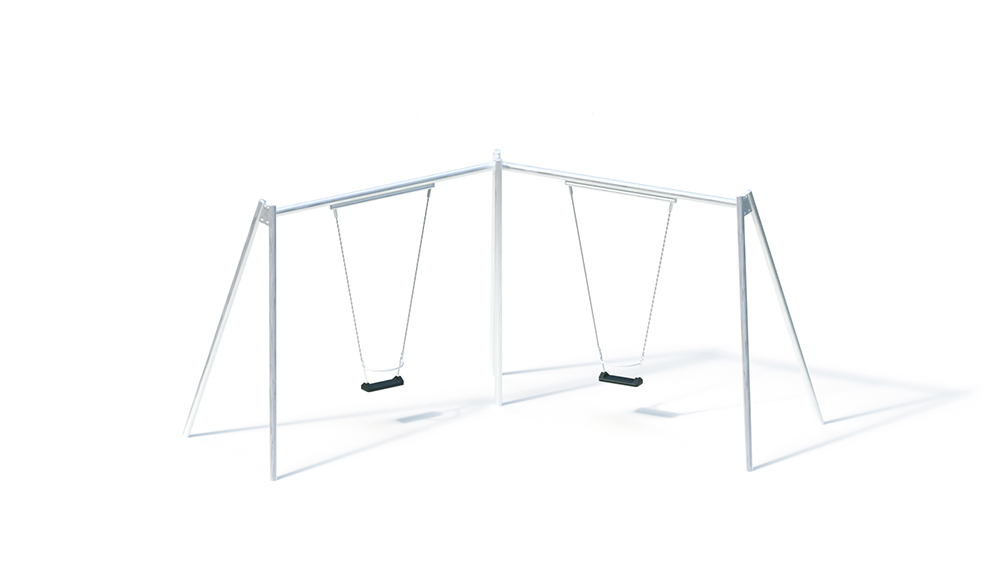

Standard contact swing (2.50)

Key Attributes

Age Group

5+

Area of Use

public playgrounds

Activity

Physical activity

Suitable for

Suitable for
children from 5 years of age,
public playgrounds, etc.
Exercise activities

Techincal Specifications

Lifting Device

-

Total Length

6.65 m

Total Width

3.25 m

Total Height

2.71 m

Minimum Space Length

10.00 m

Minimum Space Width

8.30 m

Minimum Space Height

2.71 m

Heaviest Single Piece

36.00 kg

(Total) Weight

210.00 kg

Free Height of Fall

1.50 m

Platform Heights

-

Foundations

Foundation 1

4 pieces - 0.70 x 0.50 x 0.50 m volume: 0.18 m3

Foundation 2

1 piece - 1.60 x 0.50 x 0.50 m volume: 0.40 m3

Foundation 3

-

Foundation 4

-

Foundation 5

-

Foundation 6

-

Assembly

Number of Installers

2 pers.

Assembly Time

4 h

Assembly Details

Assembly time 2 fitters each 4 hours (without foundation creation)

Technical Data

Technical data
Floor area: 3.25 x 6.65 m
Minimum space: 8.30 x 10.00 m (25 m²)
Swing height: 2.50 m
Weight: 36 kg heaviest individual part
210 kg in total

– Steel rocking supports, Ø 76 mm, wall thickness 2.9 mm, hot-dip galvanized; Connection to the swing carrier via connection plates – swing carrier
made of steel, Ø 88.9 mm, wall thickness 3.2 mm, hot-dip galvanized
– swing axis made of stainless steel, consisting of internal bearing axis Ø 28 mm made of solid material, outer tube Ø 42.4 mm with 2 mm wall thickness and slide bearings
– Trapezoidal chain suspension Ø 7 mm with integrated, ball-bearing swivel to prevent the chains from becoming knotted
– Safety swing seats made of rubber with dimensionally stable aluminum insert with jump-off barrier, integrated chain adapters on plain-bearing joints and seamless single-point
suspension , – Chain holder with clamp adapter made of stainless steel.

Foundations (on site)
4 pcs. 0.50 x 0.70 x 0.50 m
1 pc. 0.50 x 1.60 x 0.50 m
amount of concrete: 1.10 m³

Free fall height
1.50 m
