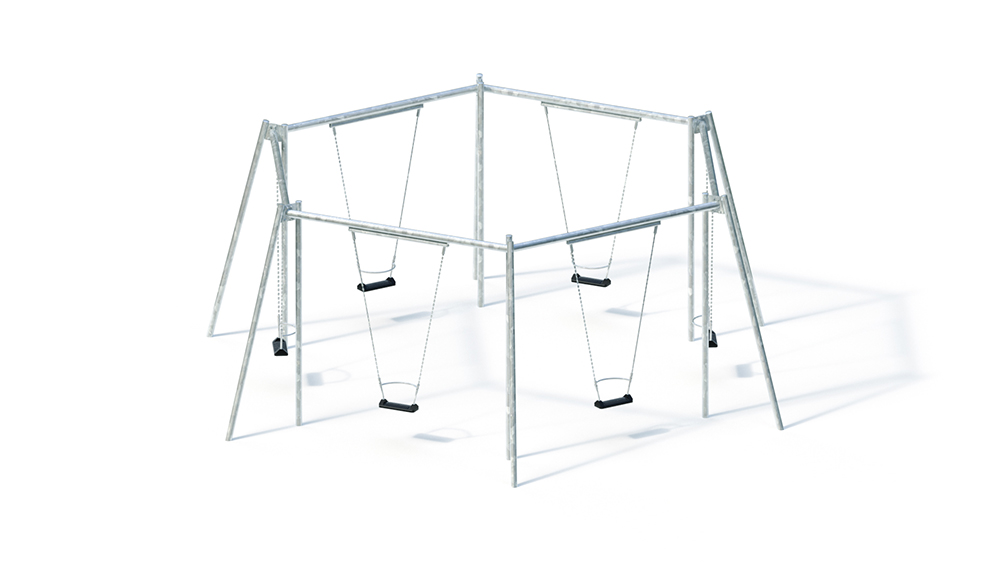

Standard contact swing (2.50)

5+

public playgrounds

Swings

Suitable for
children from 5 years of age,
public playgrounds, etc.
Exercise activities

-

7.35 m

6.40 m

2.71 m

13.15 m

13.15 m

2.71 m

36.00 kg

500.00 kg

1.50 m

-

6 pieces - 1.60 x 0.50 x 0.50 m volume: 0.40 m3

-

-

-

-

-

2 pers.

6 h

Installation time 2 fitters 6 hours each (without foundation creation)

Technical data
Floor area: 6.40 x 7.35 m
Minimum space: Ø 13.15 m (71 m²)
Swing height: 2.50 m
Weight: 36 kg Heaviest single part
500 kg in total

– Steel rocking supports, Ø 76 mm, wall thickness 2.9 mm, hot-dip galvanized; Connection to the swing carrier via connection plates – swing carrier
made of steel, Ø 88.9 mm, wall thickness 3.2 mm, hot-dip galvanized
– swing axis made of stainless steel, consisting of internal bearing axis Ø 28 mm made of solid material, outer tube Ø 42.4 mm with 2 mm wall thickness and slide bearings
– Trapezoidal chain suspension Ø 7 mm with integrated, ball-bearing swivel to prevent the chains from becoming knotted
– Safety swing seats made of rubber with dimensionally stable aluminum insert with jump-off barrier, integrated chain adapters on plain-bearing joints and uninterrupted single-point
suspension – Chain holder with clamp adapter made of stainless steel.

Foundations (on site)
6 pcs. 0.50 x 1.60 x 0.50 m
amount of concrete: 2.40 m³

Free fall height
1.50 m
