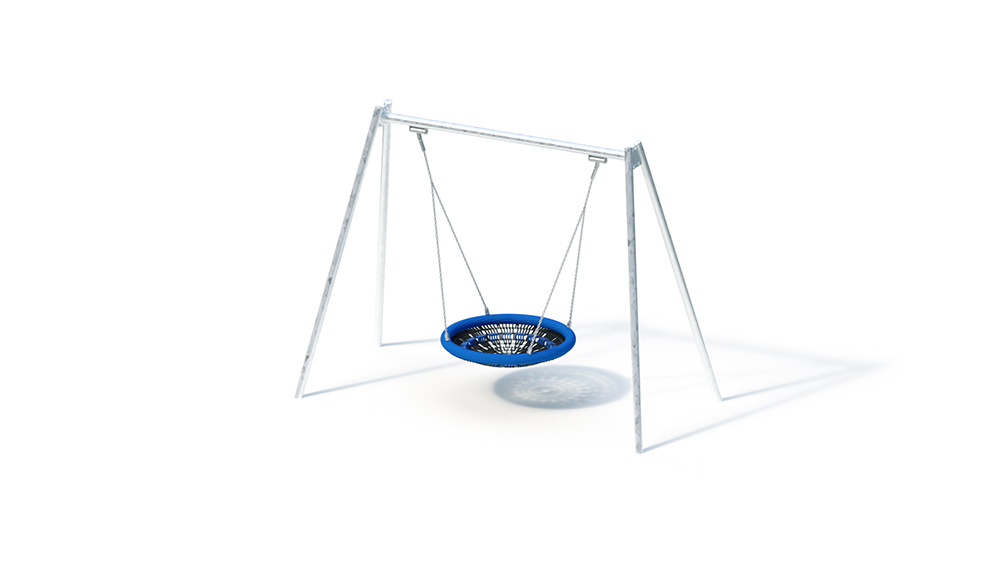

Standard basket swing (2.50)

-+

-

-

Suitable for
children from 3 years,
public playgrounds, etc.,
exercise activities

-

3.65 m

1.75 m

2.71 m

8.35 m

3.65 m

2.71 m

50.00 kg

175.00 kg

2.15 m

-

0 pieces - 0.70 x 0.50 x 0.50 m volume: 0.18 m3

-

-

-

-

-

2 pers.

2 h

Assembly time 2 fitters each 1.5 hours (without foundation creation)

Technical data
Floor area: 1.75 x 3.65 m
Minimum space: 7.58 x 3.65 m (20 m²)
Swing height: 2.50 m
Weight: 50 kg Heaviest individual part
175 kg in total

– Rocking supports made of stainless steel tube Ø 76 mm, wall thickness 2.9 mm; Connection to swing carrier via connection
plates – swing carrier made of stainless steel tube Ø 88.9 mm, wall thickness 3.2 mm; Connection to swing supports via connection
plates – specially designed swivel and universal joints, designed for the high dynamic requirements of this platform
swing – two-part swing axis made of stainless steel with roller bearings including a second device to secure the swing seat to prevent falling if the main attachment fails.
–
Chain holder with sliding-bearing compensating cross -joint – Trapezoidal chain suspension consisting of stainless steel chains Ø 7 mm, with integrated, ball-bearing swivel to prevent the chains from becoming knotted
– on the swing axles and on the swing basket: chain attachment with clamp adapter made of stainless steel
– swing basket with all-round damping made of PUR foam and PE rope sheathing blue Ø 20 mm; Basket ring Ø 1.20 m made of stainless steel tube Ø 38 mm, wall thickness 2 mm; Basket made of blue-black plastic links, connected with a steel cable. The TÜV-tested, maximum acceleration is 50g. According to DIN EN 1176-2, the limit value is 120g. According to the TÜV test, the surface pressure is 79.6 N / cm², the limit is 90N / cm²

Max. Load: 400 kg.
Corresponds to approx. 7 children up to 14 years.

Foundations (on site)
4 pcs. 0.50 x 0.70 x 0.50 m
amount of concrete: 0.70 m³

Free fall height
1.61 m
