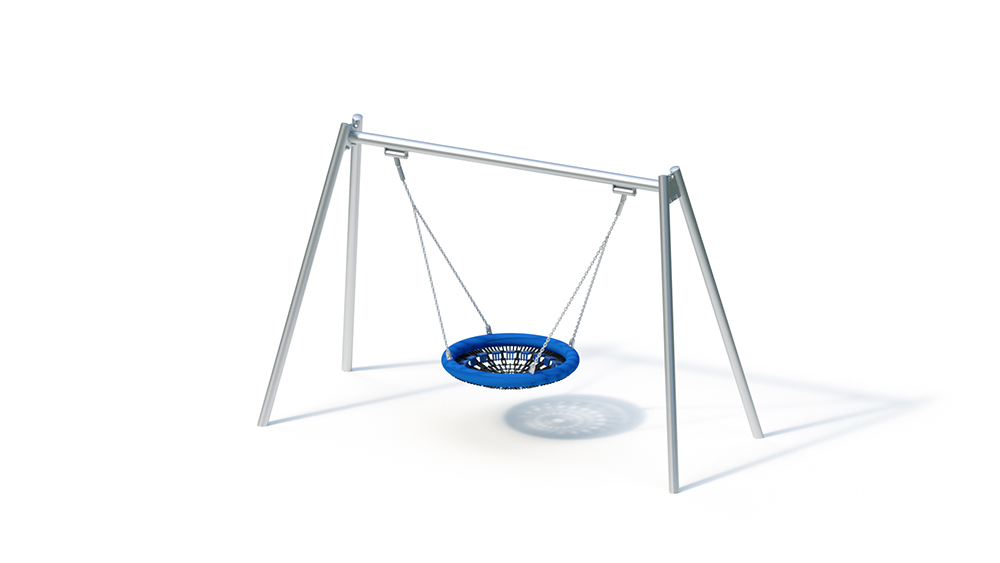

Standard basket swing (2.00)
Key Attributes
Age Group
-+
Area of Use
-
Activity
-
Suitable for
Suitable for
children from 3 years,
public playgrounds, etc.,
exercise activities
Techincal Specifications
Lifting Device
-
Total Length
-
Total Width
-
Total Height
2.21 m
Minimum Space Length
-
Minimum Space Width
-
Minimum Space Height
2.21 m
Heaviest Single Piece
-
(Total) Weight
160.00 kg
Free Height of Fall
1.30 m
Platform Heights
-
Foundations
Foundation 1
-
Foundation 2
-
Foundation 3
-
Foundation 4
-
Foundation 5
-
Foundation 6
-
Assembly
Number of Installers
-
Assembly Time
2 h
Assembly Details
Assembly time 2 fitters each 1.5 hours (without foundation creation)
Technical Data
Technical data
Floor area: 1.50 x 3.45 m
Minimum space: 6.92 x 3.45 m (16 m²)
Swing height: 2.00 m
Weight: 50 kg Heaviest single part
160 kg in total
– Rocking supports made of stainless steel tube Ø 76.1 mm, wall thickness 2.9 mm; Connection to swing carrier via connection
plates – swing carrier made of stainless steel tube Ø 88.9 mm, wall thickness 3.2 mm; Connection to swing supports via connection
plates – specially designed swivel and universal joints, designed for the high dynamic requirements of this platform
swing – two-part swing axis made of stainless steel with roller bearings including a second device to secure the swing seat to prevent falling if the main attachment fails.
–
Chain holder with sliding-bearing compensating cross -joint – Trapezoidal chain suspension consisting of stainless steel chains Ø 7 mm, with integrated, ball-bearing swivel to prevent the chains from becoming knotted
– on the swing axles and on the swing basket: chain attachment with clamp adapter made of stainless steel
– swing basket with all-round damping made of PUR foam and PE rope sheathing blue Ø 20 mm; Basket ring Ø 0.95 m made of stainless steel tube Ø 38 mm, wall thickness 2 mm; Basket made of blue-black plastic links, connected with a steel cable. The TÜV-tested, maximum acceleration is 50g. According to DIN EN 1176-2, the limit value is 120g. According to the TV test, the surface pressure is 79.6 N / cm², the limit value is 90N / cm²
Max. Load: 300 kg.
Corresponds to approx. 5 children up to 14 years.
Foundations (on site)
4 pcs. 0.60 x 0.60 x 0.47 m
Amount of concrete: 0.68 m³
Free fall height
1.30 m
