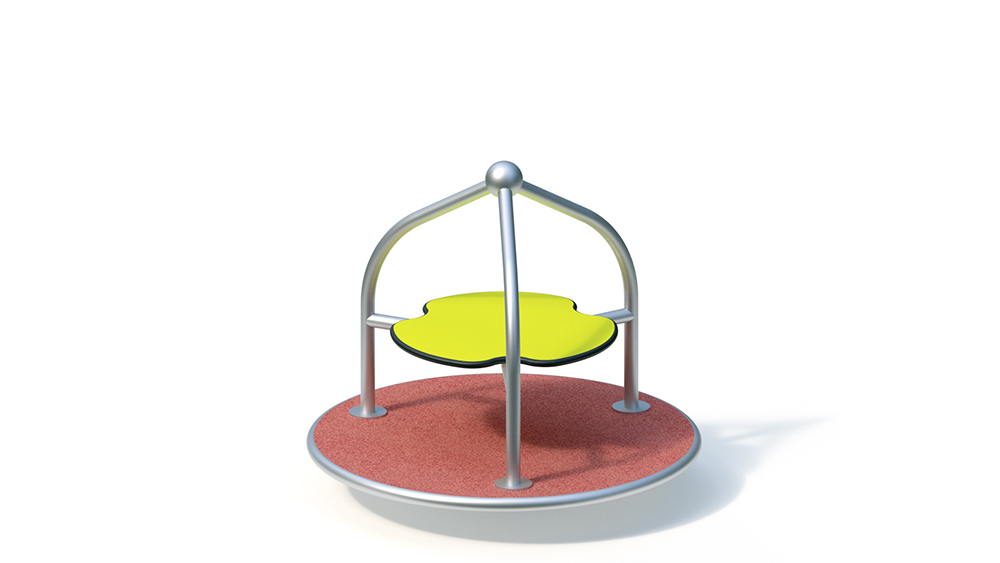

Stand and sit carousel (1.00)

3+

Public Playgrounds

Physical activity

Suitable for
children from 3 years,
public playgrounds etc.,
exercise activities

-

1.05 m

1.05 m

0.95 m

5.05 m

5.05 m

0.95 m

125.00 kg

130.00 kg

0.45 m

-

1 piece - 0.50 x 0.50 x 0.30 m volume: 0.08 m3

-

-

-

-

-

1 person

1 h

Assembly time 1 fitter 1 hour (without foundation creation)

Technical data
Base area: Ø 1.05 m
Minimum space: Ø 5.05 m (21 m²)
Total height: 0.95 m
Weight: 125 kg heaviest individual part
130 kg in total

Rotating floor and structure: stainless steel
surface of the rotating floor equipped with rubber granulate. Granulate color optionally: red, green, blue or yellow.
Seat plate made of yellow, highly weather-resistant HPL laminate
board , 20 mm roller bearings: tamper-proof and dirt-protected
anchoring with a foundation ring embedded in concrete

Foundation (on site)
1 pc. 0.50 x 0.50 x 0.30 m
amount of concrete: 0.08 m³

Free fall height
0.45 m

Please note:
Under all playground equipment that causes forced movement of the user (e.g. swings, slides, seesaw devices, cable cars, carousels, etc.), shock-absorbing floors must be provided over the entire impact area.
