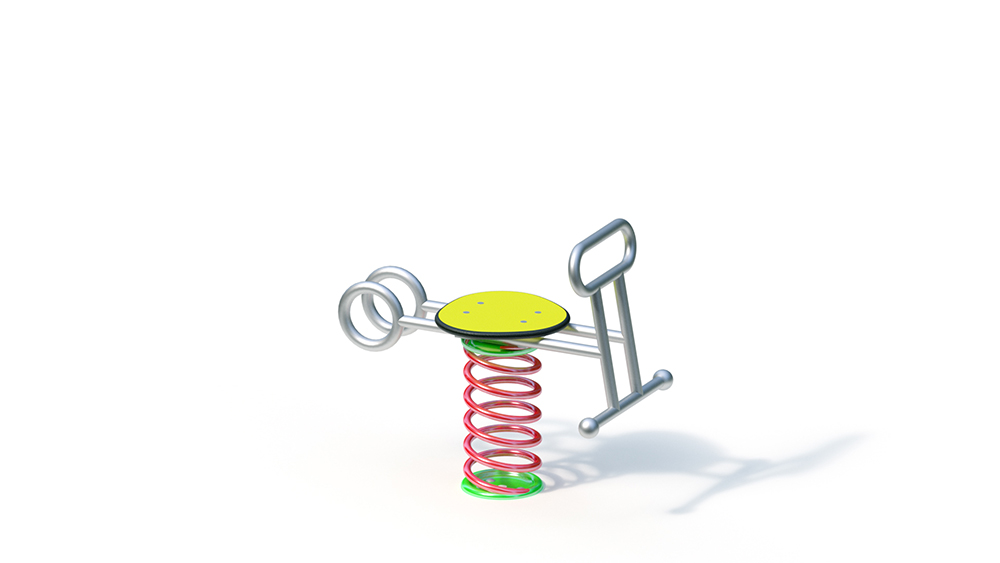

Spring rocker
Key Attributes
Age Group
2+
Area of Use
Public Playgrounds
Activity
Physical
Suitable for
Suitable for
children from 2 years,
public playgrounds, etc.,
exercise activities.
Techincal Specifications
Lifting Device
-
Total Length
0.80 m
Total Width
0.45 m
Total Height
0.72 m
Minimum Space Length
3.00 m
Minimum Space Width
2.45 m
Minimum Space Height
0.72 m
Heaviest Single Piece
-
(Total) Weight
35.00 kg
Free Height of Fall
0.46 m
Platform Heights
-
Foundations
Foundation 1
1 piece - 0.80 x 0.50 x 0.10 m volume: 0.04 m3
Foundation 2
-
Foundation 3
-
Foundation 4
-
Foundation 5
-
Foundation 6
-
Assembly
Number of Installers
-
Assembly Time
-
Assembly Details
The assembly time is delivered pre-assembled in one piece.
Technical Data
Technical data
Floor area: 0.45 x 0.80 m
Minimum space: 2.45 x 3.00 m (7 m²)
Seat height: 0.46 m
Weight: 35 kg in total
Rocker frame: stainless steel
Rocker spring: special spring wire Ø 20 mm
Seat plate: made of colored, highly weather-resistant HPL laminate board , 20 mm; theft-proof screw connection
including ground anchor
Foundation
In the case of light soil (usually loose bulk material such as bark mulch, wood chips, sand, gravel), the base plate of the ground anchor must be covered with a foundation (0.80 x 0.50 x 0.10 m).
Amount of concrete: 0.04 m³
Free height of fall
0.46 m
Please note:
Under all playground equipment that causes a forced movement of the user (e.g. swings, slides, seesaw devices, cable cars, carousels, etc.), shock-absorbing floors must be provided over the entire impact area.
A foundation anchor (item no. 1090219) is available for a surcharge for easy installation at the same height in synthetic fall protection. Even if the spring rocker is only removed from time to time, the floor opening is closed at the same height by a corresponding stainless steel plate or HPL plate.
