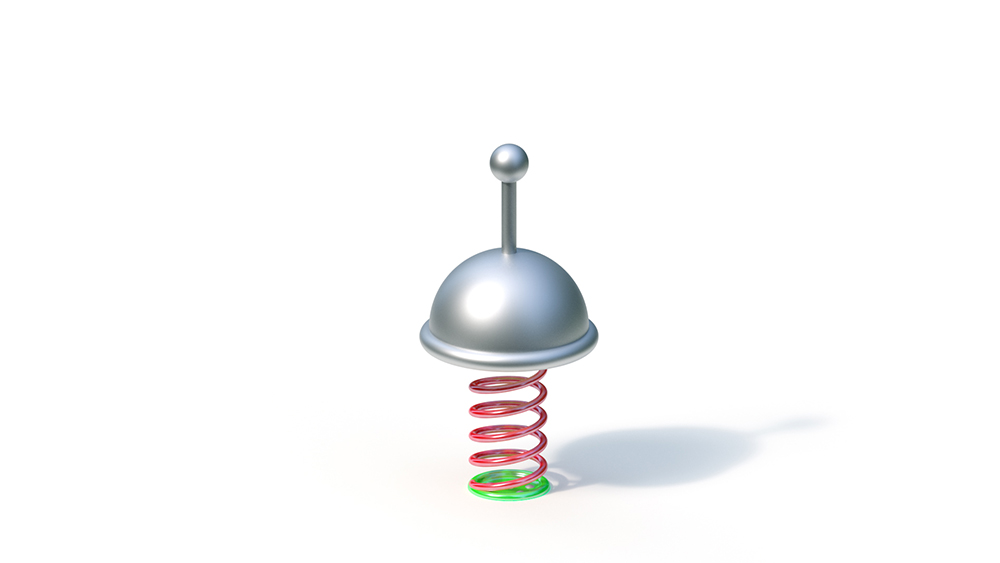

Spring rocker
Key Attributes
Age Group
2+
Area of Use
Public Playgrounds
Activity
Physical
Suitable for
Suitable for
children from 2 years,
public playgrounds, etc.,
exercise activities.
Techincal Specifications
Lifting Device
-
Total Length
0.45 m
Total Width
0.45 m
Total Height
0.92 m
Minimum Space Length
2.80 m
Minimum Space Width
2.80 m
Minimum Space Height
0.92 m
Heaviest Single Piece
-
(Total) Weight
25.00 kg
Free Height of Fall
0.62 m
Platform Heights
-
Foundations
Foundation 1
1 piece - 0.80 x 0.50 x 0.10 m volume: 0.04 m3
Foundation 2
-
Foundation 3
-
Foundation 4
-
Foundation 5
-
Foundation 6
-
Assembly
Number of Installers
-
Assembly Time
-
Assembly Details
The assembly time is delivered pre-assembled in one piece
Technical Data
Technical data
Base area: Ø 0.45 m
Minimum space: Ø 2.80 m (7 m²)
Total height: 0.95 m Seat
height: 0.63 m
Rocker spring: Special spring wire Ø 20 mm
Seat: Stainless steel dome with handle / weatherproof
Weight: 25 kg a total of
Including ground anchor
Foundation
In the case of light soil (usually loose bulk material such as bark mulch, wood chips, sand, gravel), the base plate of the ground anchor must be covered with a foundation (0.80 x 0.50 x 0.10 m).
Amount of concrete: 0.04 m³
Free height of fall
0.62 m
Please note:
Under all playground equipment that causes a forced movement of the user (e.g. swings, slides, seesaw devices, cable cars, carousels, etc.), shock-absorbing floors must be provided over the entire impact area.
