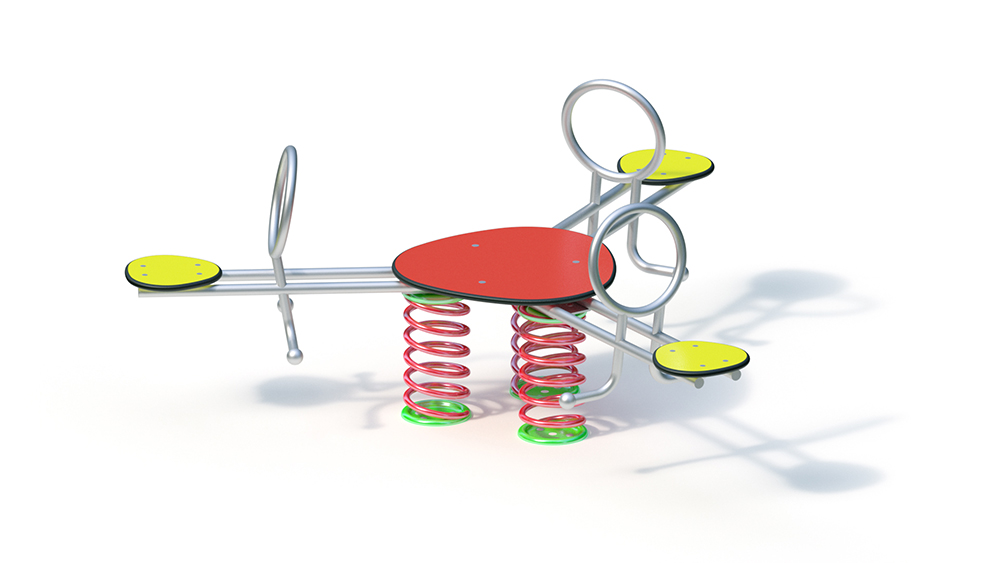

Spring rocker
Key Attributes
Age Group
4+
Area of Use
Public Playgrounds
Activity
Physical
Suitable for
Suitable for
children from 4 years,
public playgrounds etc.,
exercise activities.
Techincal Specifications
Lifting Device
-
Total Length
2.05 m
Total Width
1.80 m
Total Height
0.85 m
Minimum Space Length
4.35 m
Minimum Space Width
4.35 m
Minimum Space Height
0.85 m
Heaviest Single Piece
-
(Total) Weight
90.00 kg
Free Height of Fall
0.62 m
Platform Heights
-
Foundations
Foundation 1
-
Foundation 2
-
Foundation 3
-
Foundation 4
-
Foundation 5
-
Foundation 6
-
Assembly
Number of Installers
-
Assembly Time
-
Assembly Details
The assembly time is delivered pre-assembled in one piece.
Technical Data
Technical data
Base area: 1.80 x 2.05 m
Minimum space: Ø 4.35 m (15 m²) Seat
height: 0.47 m
Rocker frame: Stainless steel
Rocker spring: Special spring wire Ø 20 mm
Seat plate : made of colored, highly weather-resistant HPL laminate board , 20 mm; theft-proof screw connection.
Weight: 90 kg in total
Incl. Ground anchor
Foundation
In the case of light soil (usually loose bulk material such as bark mulch, wood chips, sand, gravel), the base plate of the ground anchor must be covered with a foundation (Ø 1.50 m).
Amount of concrete: 0.18 m³
Free height of fall
0.62 m
Foundation anchors (item no. 1090219) are available for an extra charge for easy installation in synthetic fall protection at the same height. Even if the spring rocker is only removed from time to time, the floor opening is closed at the same height by a corresponding stainless steel plate or HPL plate.
