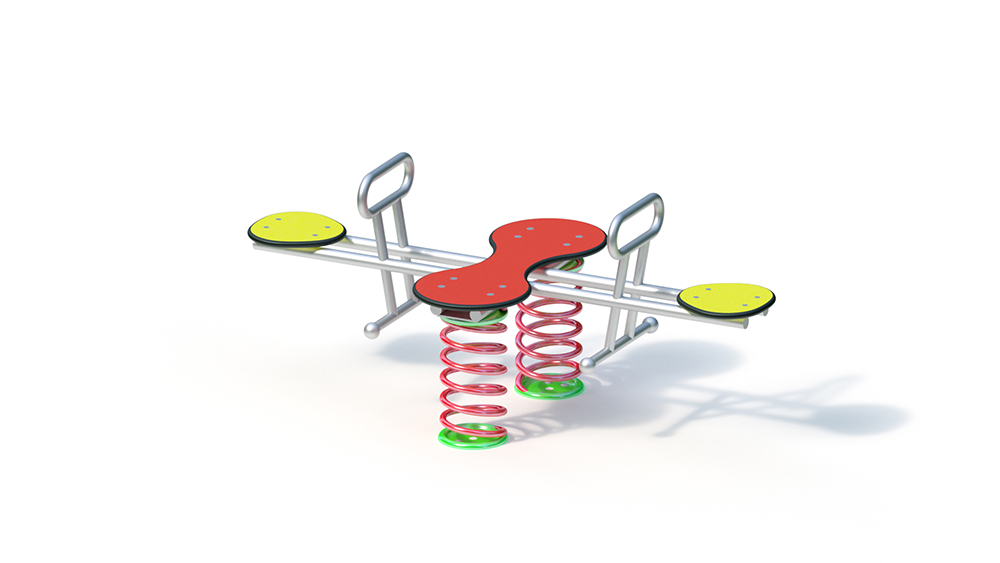

Spring rocker

Key Attributes

Age Group


Area of Use

Public Playgrounds



Suitable for

Suitable for
children from 2 years,
public playgrounds, etc.,
exercise activities.

Techincal Specifications

Lifting Device


Total Length

1.70 m

Total Width

0.85 m

Total Height

0.71 m

Minimum Space Length

3.80 m

Minimum Space Width

2.85 m

Minimum Space Height

0.71 m

Heaviest Single Piece


(Total) Weight

60.00 kg

Free Height of Fall

0.75 m

Platform Heights



Foundation 1

1 piece - 1.30 x 0.80 x 0.10 m volume: 0.11 m3

Foundation 2


Foundation 3


Foundation 4


Foundation 5


Foundation 6



Number of Installers


Assembly Time


Assembly Details

The assembly time is delivered pre-assembled in one piece.

Technical Data

Technical data
Base area: 0.85 x 1.70 m
Minimum space: 2.85 x 3.80 m (10 m²) Seat
height: 0.47 m
Rocker frame: Stainless steel
Rocker spring: Special spring wire Ø 20 mm
Seat plate: made of colored, highly weather-resistant HPL Laminate board, 20 mm; theft-proof screw connection.
Weight: 60 kg in total

Incl. Ground anchor

In the case of light soil (usually loose bulk material, such as bark mulch, wood chips, sand, gravel), the base plate of the ground anchor must be covered with a foundation (0.80 x 1.30 x 0.10 m).
Amount of concrete: 0.10 m³

Free fall height
0.75 m

Please note:
Under all playground equipment that causes a forced movement of the user (e.g. swings, slides, seesaw devices, cable cars, carousels, etc.), shock-absorbing floors must be provided over the entire impact area.

Foundation anchors (item no. 1090219) are available for an extra charge for easy installation in synthetic fall protection at the same height. Even if the spring rocker is only removed from time to time, the floor opening is closed at the same height by a corresponding stainless steel plate or HPL plate.
