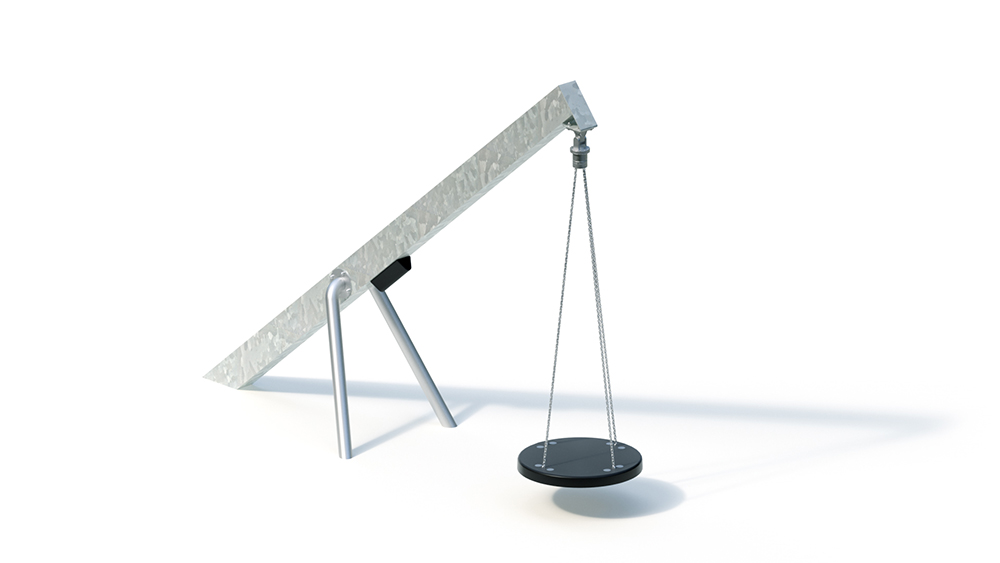

Single point swing
Key Attributes
Age Group
-+
Area of Use
-
Activity
Swings
Suitable for
Suitable for
children from 8 years,
public playgrounds etc.,
physical activities
Techincal Specifications
Lifting Device
Y
Total Length
4.79 m
Total Width
1.42 m
Total Height
3.63 m
Minimum Space Length
9.16 m
Minimum Space Width
-
Minimum Space Height
-
Heaviest Single Piece
245.00 kg
(Total) Weight
450.00 kg
Free Height of Fall
2.30 m
Platform Heights
-
Foundations
Foundation 1
3 pieces - 0.90 x 0.90 x 0.90 m volume: 0.73 m3
Foundation 2
-
Foundation 3
-
Foundation 4
-
Foundation 5
-
Foundation 6
-
Assembly
Number of Installers
2 pers.
Assembly Time
2 h
Assembly Details
Assembly time 2 fitters, 2 hours each, plus lifting gear (without creating the foundation)
Technical Data
Technical data
Floor area: 1.42 x 4.79 m
Minimum space: Ø 9.16 m (71 m²)
Swing height: 3.30 m
Weight: 245 kg Heaviest single part
450 kg in total
– Swing frame made of hot-dip galvanized round and rectangular steel tubes, Ø 108/260 x 180 mm
– Special universal joint (Kaiser & Kühne)
– Rubber swing platform Ø 1.00 m, shock-absorbing, with shape-stabilizing polyethylene core plate and chain suspension consisting of stainless steel chains Ø 7 mm
Foundations (on site)
3 pcs. 0.90 x 0.90 x 0.90 m
amount of concrete: 2.19 m³
Free fall
2.30 m
