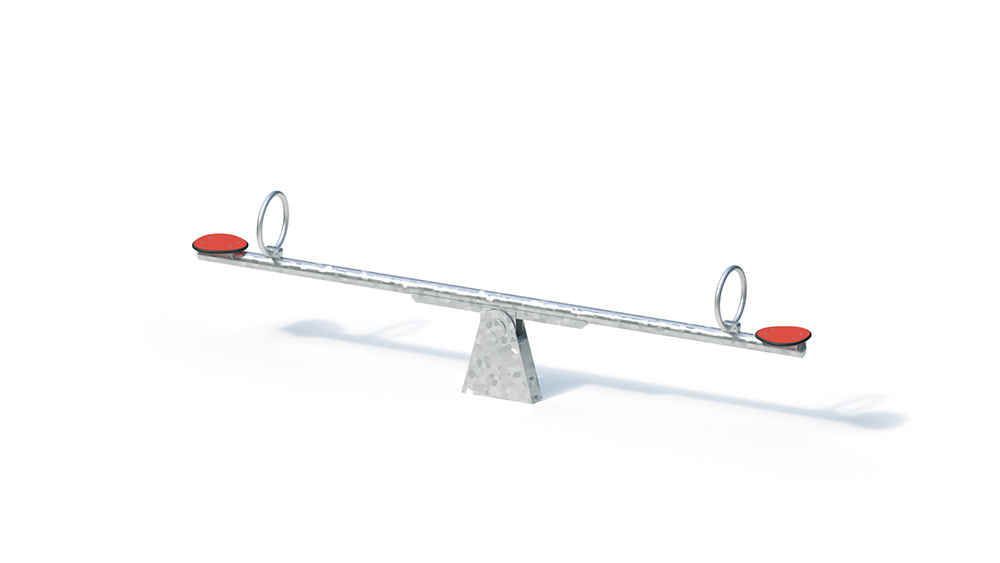

Single bar rocker
Key Attributes
Age Group
4+
Area of Use
Public Playgrounds
Activity
Physical Activity
Suitable for
Suitable for
children from 4 years of age,
public playgrounds, etc.
Exercise activities.
Techincal Specifications
Lifting Device
-
Total Length
3.55 m
Total Width
0.35 m
Total Height
0.90 m
Minimum Space Length
5.55 m
Minimum Space Width
2.35 m
Minimum Space Height
0.90 m
Heaviest Single Piece
130.00 kg
(Total) Weight
141.00 kg
Free Height of Fall
1.00 m
Platform Heights
-
Foundations
Foundation 1
1 piece - 0.80 x 0.60 x 0.60 m volume: 0.29 m3
Foundation 2
-
Foundation 3
-
Foundation 4
-
Foundation 5
-
Foundation 6
-
Assembly
Number of Installers
2 pers.
Assembly Time
1 h
Assembly Details
Assembly time 2 fitters 0.5 hours (without foundation creation)
Technical Data
Technical data
Base area: 0.35 x 3.55 m
Minimum space: 2.35 x 5.55 m (13 m²)
Rocking height: max. 1.00 m
Rocking beam: Steel tube Ø 82.5 x 6.3 x 3445 DIN 2458, hot-dip galvanized
handle: stainless steel tube, Ø 30 mm, wall thickness 2 mm
seat
plate: high-pressure
laminate 20 mm sheet steel housing : hot-dip galvanized, wall thickness 6 mm rocker mechanism made of vibration-damping rubber suspension.
In addition, shock-absorbing thanks to parabolic rubber buffers.
Self-lubricating slide bearings.
Weight: 130 kg heaviest single part
141 kg in total
Foundation (on site)
1 pc. 0.60 x 0.80 x 0.60 m
Amount of concrete: 0.29 m³
Free fall height
1.00 m
