Key Attributes
Age Group
2+
Area of Use
Public Playgrounds
Activity
Social
Suitable for
Suitable for
children from 2 years,
public playgrounds etc.
social activities.
Techincal Specifications
Lifting Device
-
Total Length
2.15 m
Total Width
1.20 m
Total Height
2.65 m
Minimum Space Length
5.15 m
Minimum Space Width
4.20 m
Minimum Space Height
2.65 m
Heaviest Single Piece
55.00 kg
(Total) Weight
260.00 kg
Free Height of Fall
0.80 m
Platform Heights
0.20 m
Foundations
Foundation 1
4 pieces - 0.40 x 0.40 x 0.40 m volume: 0.07 m3
Foundation 2
-
Foundation 3
-
Foundation 4
-
Foundation 5
-
Foundation 6
-
Assembly
Number of Installers
2 pers.
Assembly Time
1 h
Assembly Details
Assembly time 2 fitters 2 hours each (without foundation creation)

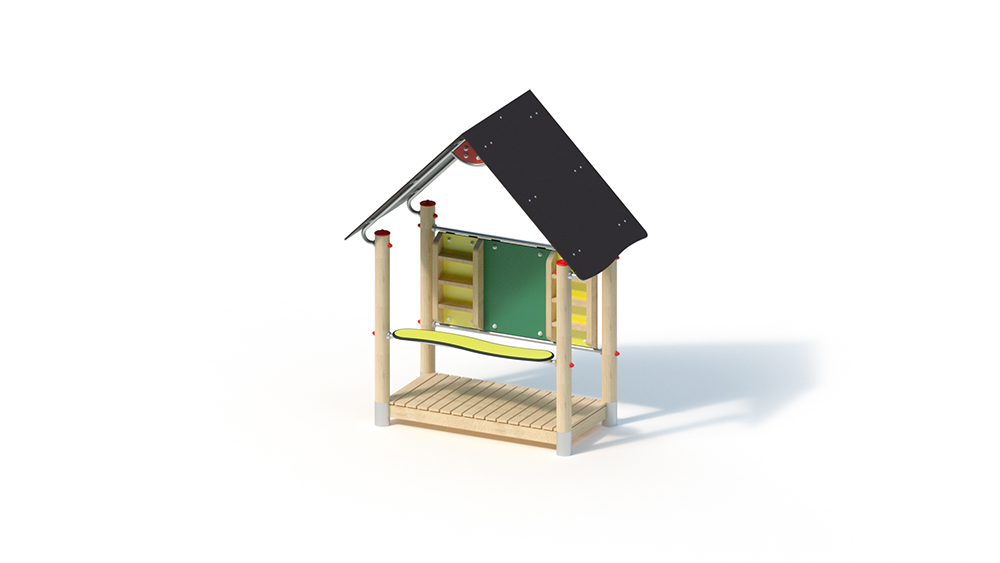

Technical Data
Technical data
Floor area: 1.20 x 2.15 m
Minimum space: 4.20 x 5.15 m (20 m²)
Total height: 2.65 m
Platform height: 0.20 m
Support
post Support post made of Robinia plywood, milled cylindrically, Ø 120 mm. Unprotected end grain surfaces are covered with non-detachable post caps made of stainless steel.
Pipe stand made of stainless steel for the foundation and mounting of robinia round wood posts, Ø 120 mm, below the playing level.
Platform
floor Platform floor made of boards, 30 mm thick and all-round square timber beams 45 x 100 mm. The dried robinia lumber is planed, chamfered and free from rotten branches. Non-positive floor fastening thanks to special stainless steel brackets with a continuous bolt connection.
Attachment parts
– Robinia shelf wall 45 x 100 mm, planed, chamfered and free of rotten branches, rear wall made of highly weather-resistant HPL laminate board (green, yellow), 15 mm
– gable roof, inclination: 45 °, made of highly weather-resistant HPL laminate board (brown) , 13 mm, attachment to roof frame made of stainless steel tube Ø 33.7 x 2 mm
– counter, wave-shaped, made of colored, highly weather-resistant HPL laminate board (yellow), 20 mm
Metal components: stainless steel. The robinia wood is provided with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment reduces cracking. The modular add-on parts introduce their forces directly into the support posts via a special adapter attachment. The screw connections are secured against unauthorized loosening with cover caps.
Foundations (on site)
4 pcs. 0.40 x 0.40 x 0.40 m
Amount of concrete: 0.26 m³
Free fall height
0.80 m
