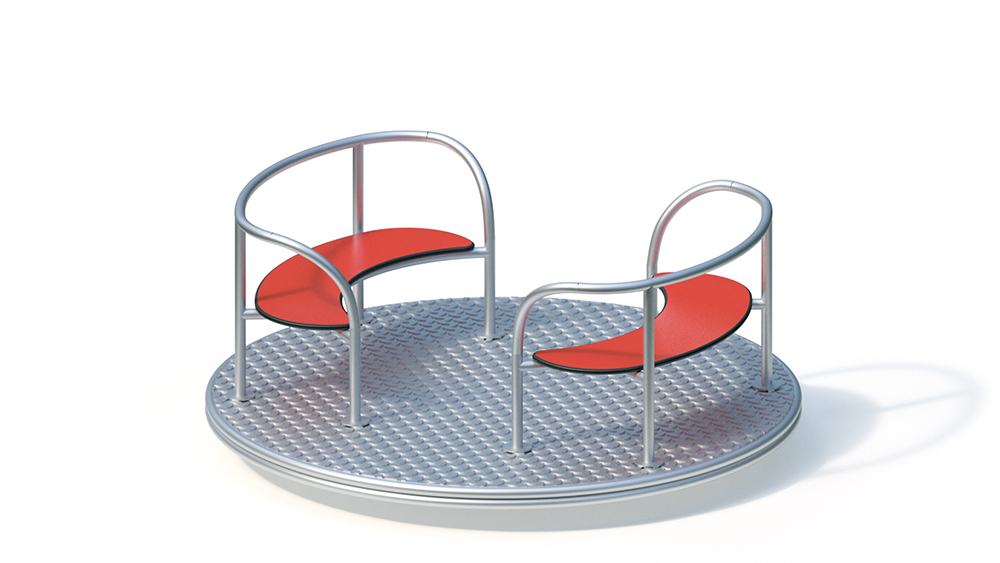

Seat carousel (2.00)
Key Attributes
Age Group
5+
Area of Use
Public Playgrounds
Activity
Physical activity
Suitable for
Suitable for
children from 5 years of age,
public playgrounds, etc.
Exercise activities.
Techincal Specifications
Lifting Device
Y
Total Length
2.05 m
Total Width
2.05 m
Total Height
0.85 m
Minimum Space Length
6.05 m
Minimum Space Width
6.05 m
Minimum Space Height
0.85 m
Heaviest Single Piece
330.00 kg
(Total) Weight
340.00 kg
Free Height of Fall
0.55 m
Platform Heights
-
Foundations
Foundation 1
1 piece - 0.70 x 0.70 x 0.50 m volume: 0.25 m3
Foundation 2
-
Foundation 3
-
Foundation 4
-
Foundation 5
-
Foundation 6
-
Assembly
Number of Installers
2 pers.
Assembly Time
1 h
Assembly Details
Assembly time 2 fitters 1 hour each (without foundation creation)
Technical Data
Technical data
Base area: Ø 2.05 m
Minimum space: Ø 6.05 m (29 m²)
Total height: 0.85 m
Weight: 330 kg Heaviest individual part,
340 kg in total
Rotating floor and structure: profiled stainless steel sheet / stainless steel / high-pressure laminate 20 mm.
Rolling bearings: tamper-proof and protected against dirt.
The carousel is anchored by means of a flange ring that has to be set in separately.
Foundation (on site)
1 pc. 0.70 x 0.70 x 0.50 m
amount of concrete: 0.25 m³
Free fall height
0.55 m
Please note:
Under all playground equipment that causes forced movement of the user (e.g. swings, slides, seesaw devices, cable cars, carousels, etc.), shock-absorbing floors must be provided over the entire impact area.
