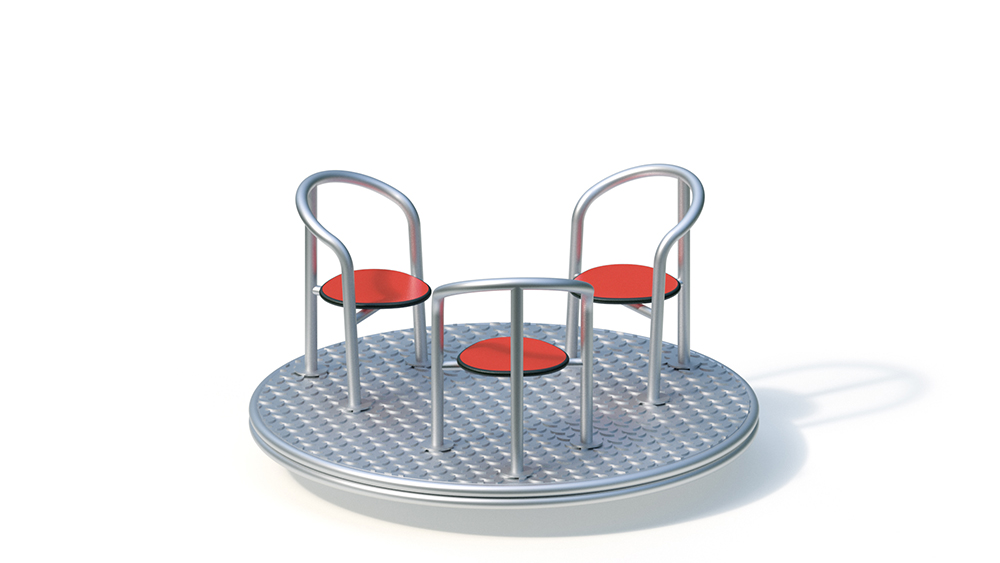

Seat carousel (1.50)

Key Attributes

Age Group


Area of Use

Public Playgrounds


Physical activity

Suitable for

Suitable for
children from 4 years of age,
public playgrounds, etc.
Exercise activities.

Techincal Specifications

Lifting Device


Total Length

1.55 m

Total Width

1.55 m

Total Height

0.85 m

Minimum Space Length

5.55 m

Minimum Space Width

5.55 m

Minimum Space Height

0.85 m

Heaviest Single Piece

185.00 kg

(Total) Weight

190.00 kg

Free Height of Fall

0.50 m

Platform Heights



Foundation 1

1 piece - 0.60 x 0.60 x 0.40 m volume: 0.15 m3

Foundation 2


Foundation 3


Foundation 4


Foundation 5


Foundation 6



Number of Installers

2 pers.

Assembly Time

1 h

Assembly Details

Assembly time 2 fitters 1 hour each (without foundation creation)

Technical Data

Technical data
Base area: Ø 1.55 m
Minimum space: Ø 5.55 m (25 m²)
Total height: 0.85 m
Weight: 185 kg heaviest individual part
190 kg in total

Rotating floor and structure: profiled stainless steel sheet / stainless steel / high-pressure laminate 20 mm.
Rolling bearings: tamper-proof and protected against dirt.
The carousel is anchored by means of a flange ring that has to be set in separately.

Foundation (on site)
1 pc. 0.60 x 0.60 x 0.40 m
Amount of concrete: 0.14 m³

Free fall height
0.50 m

Please note:
Under all playground equipment that causes forced movement of the user (e.g. swings, slides, seesaw devices, cable cars, carousels, etc.), shock-absorbing floors must be provided over the entire impact area.
