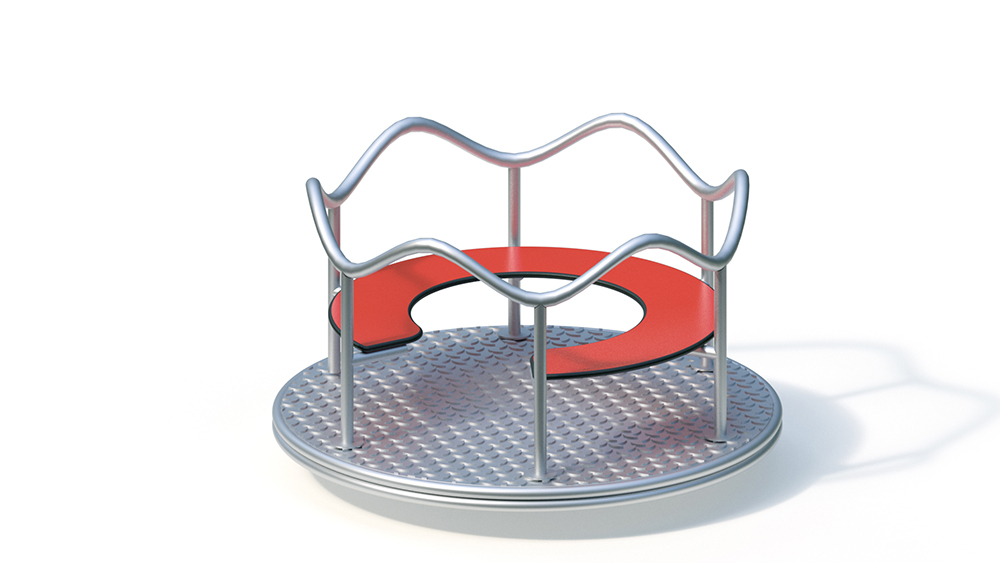

Seat carousel (1.50)

4+

Public Playgrounds

Physical activity

Suitable for
children from 4 years of age,
public playgrounds, etc.
Exercise activities.

-

1.55 m

1.55 m

0.90 m

5.55 m

5.55 m

0.90 m

195.00 kg

200.00 kg

0.50 m

-

1 piece - 0.60 x 0.60 x 0.40 m volume: 0.15 m3

-

-

-

-

-

2 pers.

1 h

Assembly time 2 fitters 1 hour each (without foundation creation)

Technical data
Base area: Ø 1.55 m
Minimum space: Ø 5.55 m (25 m²)
Total height: 0.90 m
Weight: 195 kg heaviest individual part
200 kg in total

Rotating floor and structure: profiled stainless steel sheet / stainless steel / high-pressure laminate 20 mm.
Rolling bearings: tamper-proof and protected against dirt.
The carousel is anchored by means of a flange ring that has to be set in separately.

Foundation (on site)
1 pc. 0.60 x 0.60 x 0.40 m
Amount of concrete: 0.14 m³

Free fall height
0.50 m

Please note:
Under all playground equipment that causes forced movement of the user (e.g. swings, slides, seesaw devices, cable cars, carousels, etc.), shock-absorbing floors must be provided over the entire impact area.
