0-33240-002

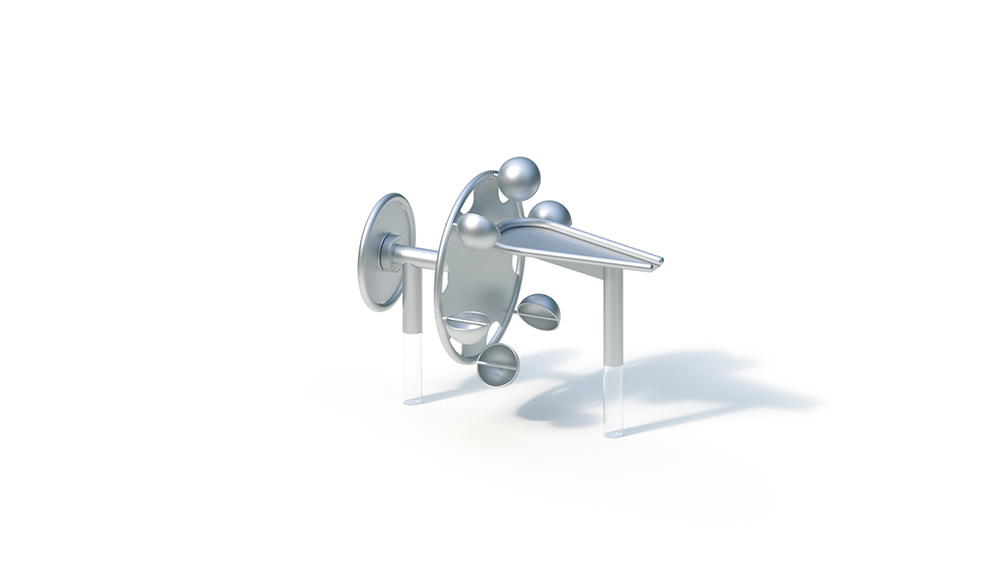

Scoop wheel

Key Attributes

Age Group

-+

Area of Use

Public Playgrounds

Activity

Manual Activity

Suitable for

Techincal Specifications

Lifting Device

-

Total Length

1.37 m

Total Width

1.04 m

Total Height

0.87 m

Minimum Space Length

4.37 m

Minimum Space Width

4.04 m

Minimum Space Height

0.87 m

Heaviest Single Piece

-

(Total) Weight

100.00 kg

Free Height of Fall

0.52 m

Platform Heights

-

Foundations

Foundation 1

-

Foundation 2

0.40 x 0.40 x 0.40 m volume: 0.07 m3

Foundation 3

-

Foundation 4

-

Foundation 5

-

Foundation 6

-

Assembly

Number of Installers

-

Assembly Time

-

Assembly Details

-

Technical Data

Technical data
Base: 1.37 x 1.04 m
Height: approx. 0.87 m
Wheel: approx. Ø 1.05 m
Weight: 100 kg in total

Welded stainless steel construction, water pumping with 6 hemispheres and water drainage via a drain pan.
Wheel bearings with roller bearings.
For on-site channel design.
Detailed planning documents are available on request.

Foundation (on site)
2 pcs. 0.40 x 0.40 x 0.40 m
Amount of concrete: 0.13 m³

Free fall height
0.52 m
