0-30198-000

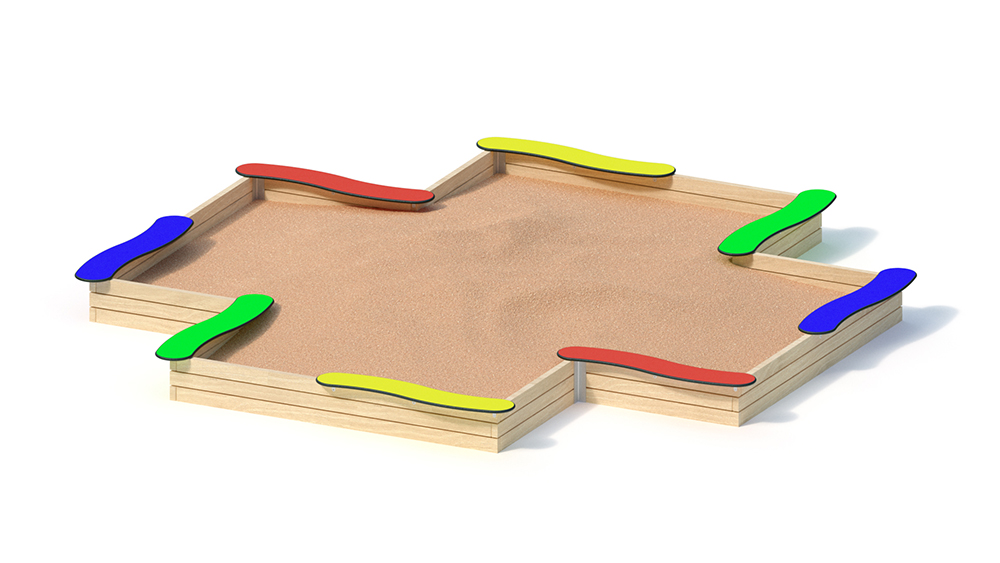

Sandpit
Key Attributes
Age Group
1+
Area of Use
Public Playgrounds
Activity
Manual activity
Suitable for
Suitable for All Ages,
Toddler Playgrounds,
Manual Activities
Techincal Specifications
Lifting Device
-
Total Length
4.95 m
Total Width
4.95 m
Total Height
0.32 m
Minimum Space Length
7.95 m
Minimum Space Width
7.95 m
Minimum Space Height
0.32 m
Heaviest Single Piece
35.00 kg
(Total) Weight
345.00 kg
Free Height of Fall
0.32 m
Platform Heights
-
Foundations
Foundation 1
12 pieces - 0.30 x 0.30 x 0.25 m volume: 0.02 m3
Foundation 2
-
Foundation 3
-
Foundation 4
-
Foundation 5
-
Foundation 6
-
Assembly
Number of Installers
2 pers.
Assembly Time
2 h
Assembly Details
Assembly time 2 fitters 2 hours each (without foundation creation)
Technical Data
Technical data
Floor space: approx. 4.95 x 4.95 m
Minimum space: approx . 7.95 x 7.95 m (53 m²)
Height: 0.32 m
Weight: 345 kg in total
Robinia sand edging 45 x 100 mm, planed, chamfered and free of rotten branches. Play and seat plate made of highly weather-resistant HPL laminate board (red, yellow, blue and green), 20 mm.
Foundations (on site)
12 pcs. 0.30 x 0.30 x 0.25 m
Amount of concrete: 0.27 m³
Free fall height
0.32 m
