0-30110-000

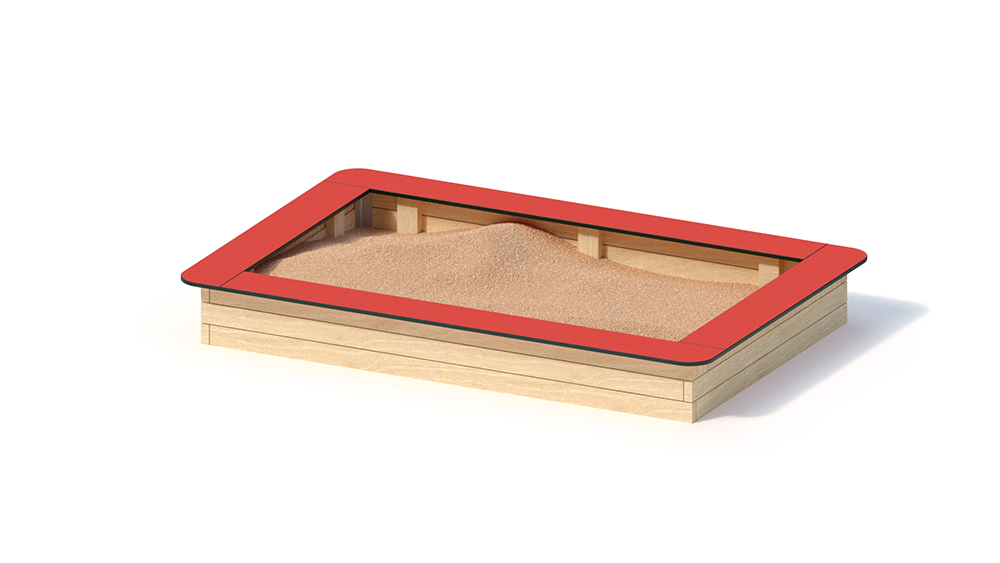

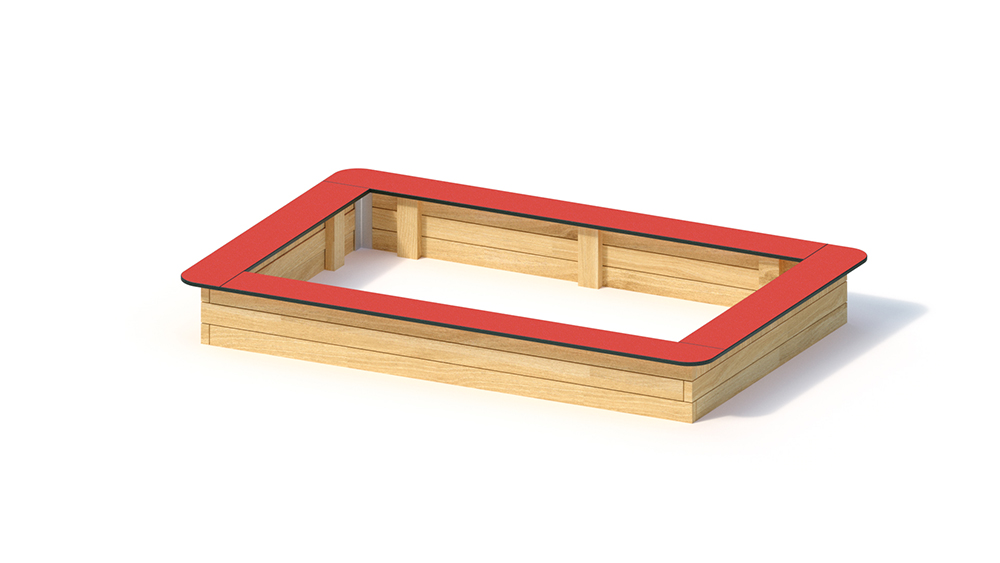

Sandpit 1.50 x 2.50
Key Attributes
Age Group
1+
Area of Use
Public Playgrounds
Activity
Manual activity
Suitable for
Suitable for All Ages,
Toddler Playgrounds,
Manual Activities
Techincal Specifications
Lifting Device
-
Total Length
2.65 m
Total Width
1.75 m
Total Height
0.32 m
Minimum Space Length
5.65 m
Minimum Space Width
4.75 m
Minimum Space Height
0.32 m
Heaviest Single Piece
35.00 kg
(Total) Weight
175.00 kg
Free Height of Fall
0.32 m
Platform Heights
-
Foundations
Foundation 1
4 pieces - 0.30 x 0.30 x 0.25 m volume: 0.02 m3
Foundation 2
-
Foundation 3
-
Foundation 4
-
Foundation 5
-
Foundation 6
-
Assembly
Number of Installers
2 pers.
Assembly Time
1 h
Assembly Details
Assembly time 2 fitters 1 hour each (without foundation creation)
Technical Data
Technical data
Floor area: 1.75 x 2.65 m
Minimum space: 4.75 x 5.65 m (25 m²)
Height: 0.32 m
Weight: 35 kg Heaviest individual part
175 kg in total
Robinia sand edging 45 x 100 mm, planed, chamfered and free of rotten branches. Play and seat plate made of highly weather-resistant HPL laminate board (red), 20 mm.
Foundations (on site)
4 pcs. 0.30 x 0.30 x 0.25 m
amount of concrete: 0.09 m³
Free fall height
0.32 m
