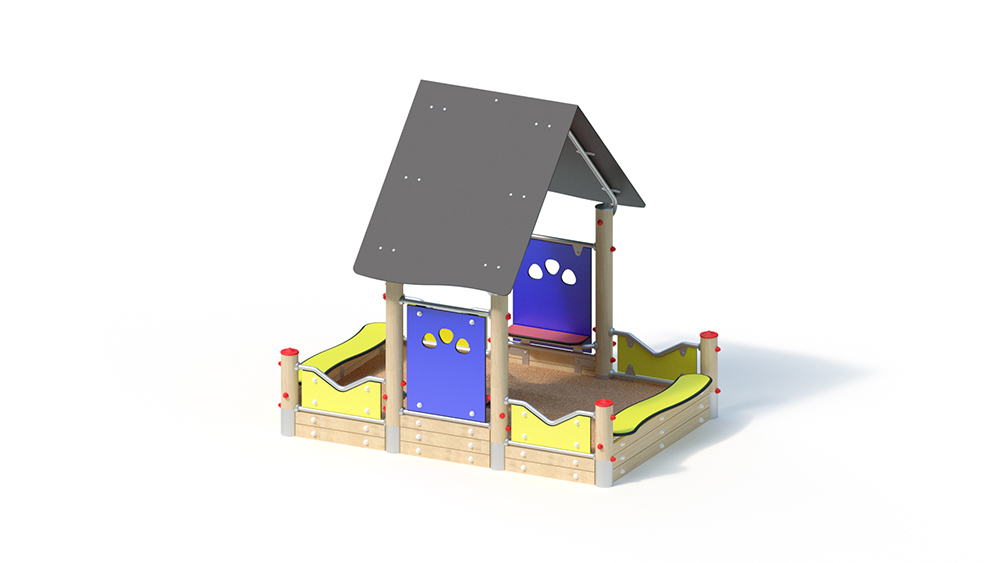

Sand playground

Key Attributes

Age Group


Area of Use

Public Playgrounds


Social activity

Suitable for

Suitable for All Ages,
Public Playgrounds, etc.
Social / Manual Activities

Techincal Specifications

Lifting Device


Total Length

2.72 m

Total Width

2.16 m

Total Height

2.42 m

Minimum Space Length

5.72 m

Minimum Space Width

5.16 m

Minimum Space Height

2.42 m

Heaviest Single Piece

30.00 kg

(Total) Weight

460.00 kg

Free Height of Fall

0.45 m

Platform Heights



Foundation 1

8 pieces - 0.40 x 0.40 x 0.40 m volume: 0.07 m3

Foundation 2


Foundation 3


Foundation 4


Foundation 5


Foundation 6



Number of Installers

2 pers.

Assembly Time

3 h

Assembly Details

Assembly time 2 fitters each 3 hours (without foundation creation)

Technical Data

Technical data
Equipment room: 2.72 x 2.16 x 2.42 m
Minimum space: 5.72 x 5.16 x 2.42 m
Total height: 2.42 m
Free fall height: 0.45 m
Impact area: 28 m²
Weight: 30 kg heaviest single part
460 kg in total

post Support post made of Robinia plywood, milled cylindrically, Ø 120 mm. Unprotected end grain surfaces are covered with non-detachable post caps made of stainless steel.
Pipe stand made of stainless steel for the foundation and mounting of robinia round wood posts, Ø 120 mm, below the playing level.

– panel parapet made of colored, highly weather-resistant HPL laminate board. Fastening between stainless steel tubes Ø 33.7 x 2 mm
– gable roof, inclination 45 °, made of highly weather-resistant HPL laminate board, 13 mm. Fastening to the roof frame made of stainless steel tube Ø 33.7 x 2 mm
– seat made of colored, highly weather-resistant HPL laminate
board , 20 mm – sand border made of robinia 95 x 30 mm, planed, chamfered and free of lazy branches
– play and seat board made of colored, maximum weather-resistant HPL laminate board, 20 mm

Metal components: stainless steel. The robinia wood is provided with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment reduces cracking. The modular add-on parts introduce their forces directly into the support posts via a special adapter attachment. The screw connections are secured against unauthorized loosening with cover caps.

Foundations (on site)
8 pcs. 0.40 x 0.40 x 0.40 m
Amount of concrete: 0.51 m³

Free fall height
0.45 m
