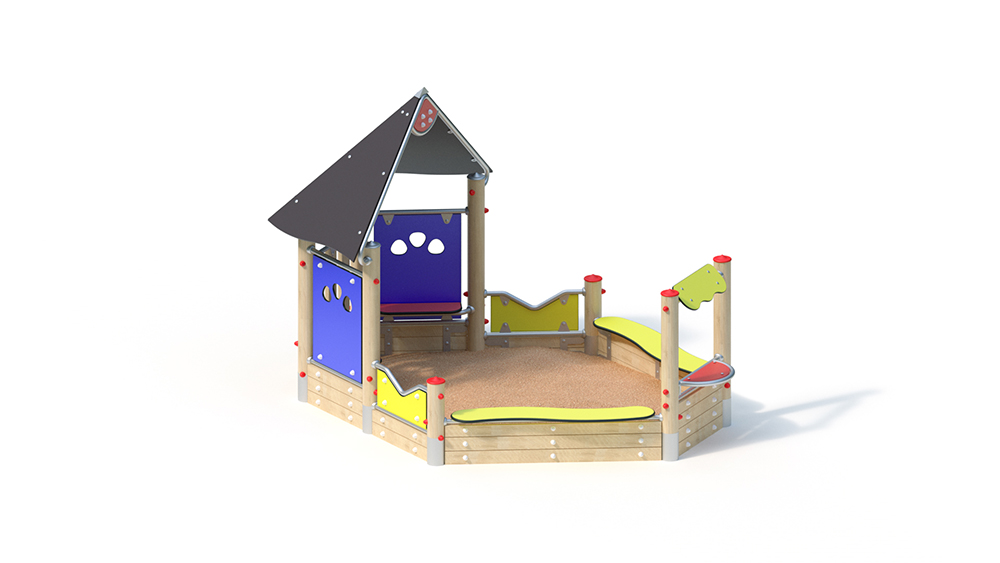

Sand playground
Key Attributes
Age Group
1+
Area of Use
Public Playgrounds
Activity
Social activity
Suitable for
Suitable for All Ages,
Public Playgrounds, etc.
Social / Manual Activities
Techincal Specifications
Lifting Device
-
Total Length
3.30 m
Total Width
2.55 m
Total Height
2.25 m
Minimum Space Length
6.30 m
Minimum Space Width
5.55 m
Minimum Space Height
2.25 m
Heaviest Single Piece
30.00 kg
(Total) Weight
290.00 kg
Free Height of Fall
0.55 m
Platform Heights
-
Foundations
Foundation 1
8 pieces - 0.40 x 0.40 x 0.40 m volume: 0.07 m3
Foundation 2
-
Foundation 3
-
Foundation 4
-
Foundation 5
-
Foundation 6
-
Assembly
Number of Installers
2 pers.
Assembly Time
3 h
Assembly Details
Assembly time 2 fitters each 3 hours (without foundation creation)
Technical Data
Technical data
Floor area: 2.55 x 3.30 m
Minimum space: 5.55 x 6.30 m (27 m²)
Total height: 2.25 m
Weight: 30 kg Heaviest single part
290 kg in total
Support
post Support post made of Robinia plywood, milled cylindrically, Ø 120 mm. Unprotected end grain surfaces are covered with non-detachable post caps made of stainless steel.
Pipe stand made of stainless steel for the foundation and mounting of robinia round wood posts, Ø 120 mm, below the playing level.
Attachment parts
– panel parapet made of colored, highly weather-resistant HPL laminate board (blue).
– Robinia wood balustrade, 125 x 30 mm. Fixing between stainless steel tubes Ø 33.7 x 2 mm.
– Tent roof, inclination 45 °, made of highly weather-resistant HPL laminate board (brown), 13 mm. Attachment to the roof frame made of stainless steel tube Ø 33.7 x 2 mm.
– Seat / counter: made of colored, highly weather-resistant HPL laminate (red, yellow), 20 mm.
– Table / awning: made of colored, highly weather-resistant HPL laminate board (red, yellow), 15 mm.
– Sand edging made of robinia 95 x 30 mm, planed, chamfered and free of rotten branches
– Play and seat plate made of colored, highly weather-resistant HPL laminate board (yellow), 20 mm.
Metal components: stainless steel. The robinia wood is provided with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment reduces cracking. The modular add-on parts introduce their forces directly into the support posts via a special adapter attachment. The screw connections are secured against unauthorized loosening with cover caps.
Foundations (on site)
8 pcs. 0.40 x 0.40 x 0.40 m
Amount of concrete: 0.51 m³
Free fall height
0.55 m
