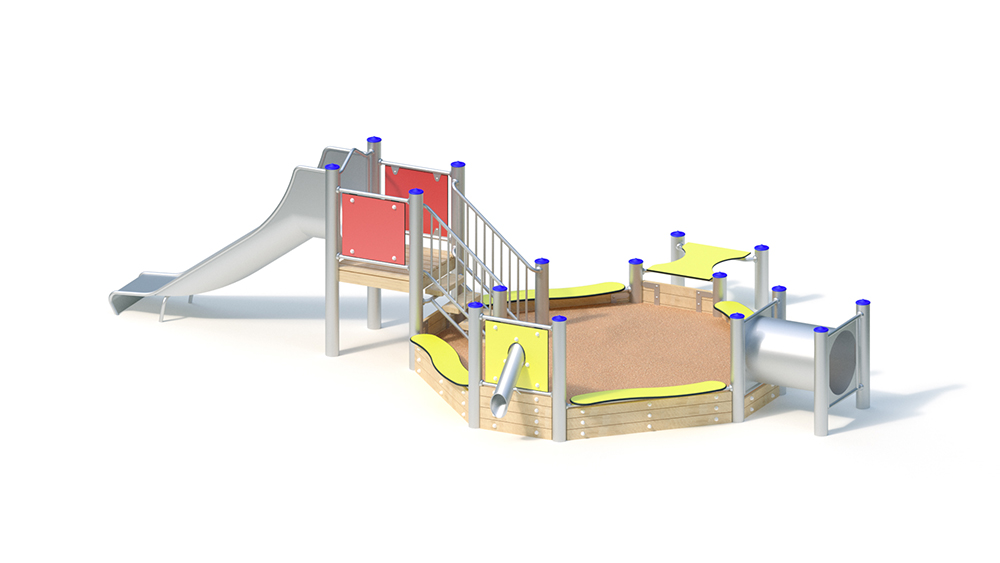

Sand playground

Key Attributes

Age Group


Area of Use

Public Playgrounds



Suitable for

Suitable for ages 2+,
public playgrounds, etc.
social / manual activities.

Techincal Specifications

Lifting Device


Total Length

6.90 m

Total Width

4.30 m

Total Height

1.75 m

Minimum Space Length

10.40 m

Minimum Space Width

7.35 m

Minimum Space Height

1.75 m

Heaviest Single Piece

75.00 kg

(Total) Weight

675.00 kg

Free Height of Fall

0.90 m

Platform Heights

0.80 m


Foundation 1

16 pieces - 0.40 x 0.40 x 0.40 m volume: 0.07 m3

Foundation 2

1 piece - 0.75 x 0.40 x 0.40 m volume: 0.12 m3

Foundation 3


Foundation 4


Foundation 5


Foundation 6



Number of Installers

2 pers.

Assembly Time

5 h

Assembly Details

Assembly time 2 fitters each 5 hours (without foundation creation)

Technical Data

Technical data
Floor space: 4.30 x 6.90 m
Minimum space: 7.35 x 10.40 m (54 m²)
Total height: 1.75 m
Platform height: 0.80 m
Sitting height: 0.90 m
Weight: 70 kg heaviest individual part
675 kg in total

posts Support posts made of stainless steel tube Ø 120 mm covered with non-detachable post caps made of stainless steel.

floor Platform floor made of boards, 30 mm thick and all-round square timber beams 45 x 100 mm. The dried robinia lumber is planed, chamfered and free from rotten branches. Non-positive floor fastening thanks to special stainless steel brackets with a continuous bolt connection.

– panel parapet made of colored, highly weather-resistant HPL laminate board. Fastening between stainless steel tubes Ø 33.7 x 2 mm
– extension stairs with steps made of robinia 170 x 45 mm, screwed onto stainless steel frame Ø 33.7 x 2 mm. Incline height of the steps 133 mm
– banister made of stainless steel pipe, Ø 33.7 x 2 mm, twist-proof
– table: made of colored, highly weather-resistant HPL laminate
board , 15 mm – crawl tunnel: Ø 56 cm, stainless steel
sheet 2.5 mm – pouring pipe wall made of HPL-
Laminate board with sand pouring pipe including shut-off valve – sand border made of robinia 95 x 30 mm, planed, chamfered and free of rotten branches
– Play and seat plate made of colored, highly weather-resistant HPL laminate
board , 20 mm – Add-on trough slide, 0.60 m wide, one-piece stainless steel construction, sheet metal thickness: 2.5 mm, with anti-roll fall protection above the seat part

For your planning, please note that stainless steel slides are oriented to the north-east due to the possible heating of the slide surface or are in the partial shade of trees.

Metal components: stainless steel. The robinia wood is provided with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment reduces cracking.
The modular add-on parts introduce their forces directly into the support posts via a special adapter attachment. The screw connections are secured against unauthorized loosening.

Foundations (on site)
16 pcs. 0.40 x 0.40 x 0.40 m
1 pc. 0.40 x 0.75 x 0.40 m
Amount of concrete: 1.14 m³

Free fall height
0.90 m
