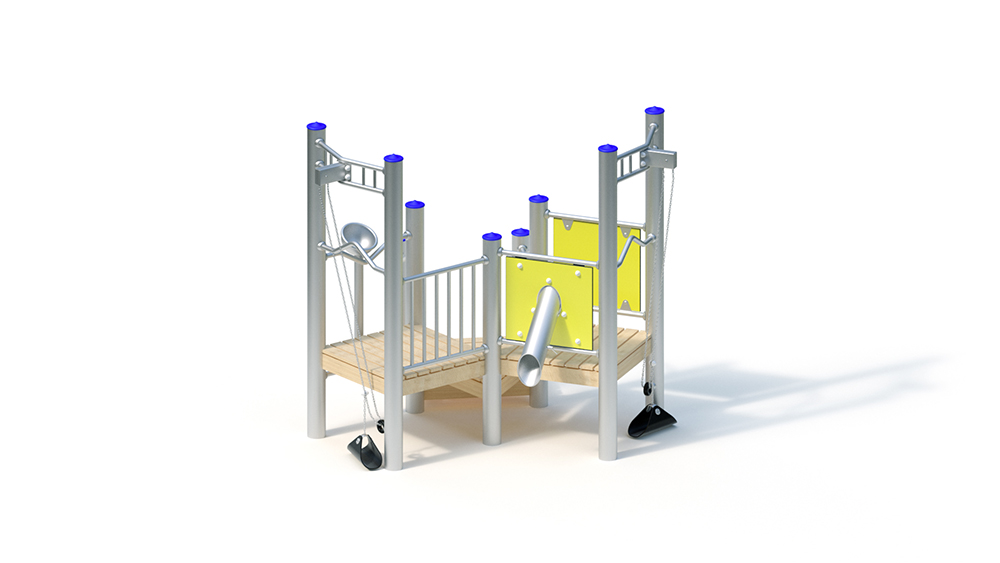

Sand mill

Key Attributes

Age Group


Area of Use

Public Playgrounds


Manual activity

Suitable for

Suitable for
children from 2 years old,
public playgrounds etc.,
social / manual activities

Techincal Specifications

Lifting Device


Total Length

2.35 m

Total Width

2.10 m

Total Height

2.15 m

Minimum Space Length

5.35 m

Minimum Space Width

5.10 m

Minimum Space Height

2.15 m

Heaviest Single Piece

25.00 kg

(Total) Weight

340.00 kg

Free Height of Fall

0.60 m

Platform Heights



Foundation 1

9 pieces - 0.40 x 0.40 x 0.40 m volume: 0.07 m3

Foundation 2


Foundation 3


Foundation 4


Foundation 5


Foundation 6



Number of Installers

2 pers.

Assembly Time

2 h

Assembly Details

Assembly time 2 fitters each 5 hours (without foundation creation)

Technical Data

Technical data
Floor area: 2.10 x 2.35 m
Minimum space: 5.10 x 5.35 m (22 m²)
Total height: 2.15 m
Platform heights: 0.20 / 0.40 / 0.60 m
Weight: 25 kg heaviest single part
340 kg in total

posts Support posts made of stainless steel tube Ø 120 mm covered with non-detachable post caps made of stainless steel.

floor Platform floor made of boards, 30 mm thick and all-round square timber beams 45 x 100 mm. The dried robinia lumber is planed, chamfered and free from rotten branches. Non-positive floor fastening thanks to special stainless steel brackets with a continuous bolt connection.

Attachment parts – Upright railing, anti-roll-off, made of stainless steel tube, Ø 33.7 x 2 mm
– Step railing made of stainless steel tube, Ø 33.7 x 2 mm
– Panel
balustrade made of highly weather-resistant HPL laminate board (yellow) – Pour wall made of HPL laminate board (yellow) with sand pouring pipe including butterfly valve, fastening between stainless steel pipes Ø 33.7 x 2 mm

mesh balustrade made of stainless steel pipe , Ø 33.7 x 2/25 x 2 mm, one-piece welded construction – sand elevator with transport container made of rubber and a 4 mm stainless steel chain, designed as a circumferential element, with it the transport container cannot be pulled into adjacent play areas or open spaces
– sand pouring pipe made of stainless steel

Metal components: stainless steel. The robinia wood is provided with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment reduces cracking.
The modular add-on parts introduce their forces directly into the support posts via a special adapter attachment. The screw connections are secured against unauthorized loosening.

Foundations (on site)
9 pcs. 0.40 x 0.40 x 0.40 m
Amount of concrete: 0.58 m³

Free fall height
0.60 m
