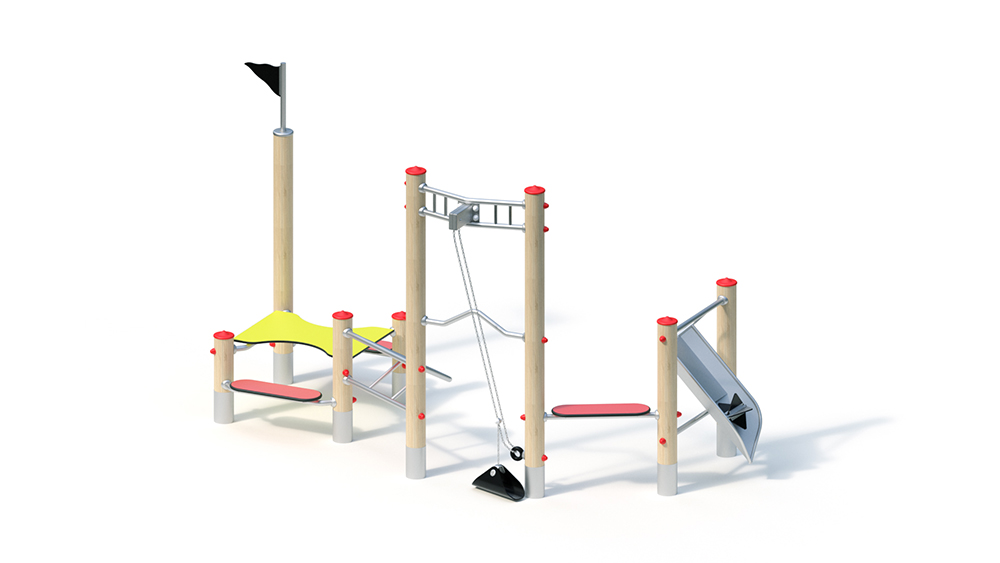

Sand mill

Key Attributes

Age Group


Area of Use

Public Playgrounds


Manual activity

Suitable for

Suitable for
children from 2 years old,
public playgrounds etc.,
social / manual activities

Techincal Specifications

Lifting Device


Total Length

3.75 m

Total Width

1.75 m

Total Height

2.05 m

Minimum Space Length

6.75 m

Minimum Space Width

4.75 m

Minimum Space Height

2.05 m

Heaviest Single Piece

25.00 kg

(Total) Weight

205.00 kg

Free Height of Fall

0.60 m

Platform Heights



Foundation 1

8 pieces - 0.40 x 0.40 x 0.40 m volume: 0.07 m3

Foundation 2


Foundation 3


Foundation 4


Foundation 5


Foundation 6



Number of Installers

2 pers.

Assembly Time

2 h

Assembly Details

Assembly time 2 fitters 2 hours each (without foundation creation)

Technical Data

Technical data
Floor area: 1.75 x 3.75 m
Minimum space: 4.75 x 6.75 m (25 m²)
Total height: 2.05 m
Weight: 25 kg heaviest individual part
205 kg in total

post Support post made of Robinia plywood, milled cylindrically, Ø 120 mm. Unprotected end grain surfaces are covered with non-detachable post caps made of stainless steel.
Pipe stand made of stainless steel for the foundation and mounting of robinia round wood posts, Ø 120 mm, below the playing level.

Attachment parts – Railing, anti-roll-off, made of stainless steel tube, Ø 33.7 x 2 mm
– Flag made of rubber with fabric insert for attachment to the support post
– Seat: made of highly weather-resistant HPL laminate board (red), 20 mm
– Table: made of highly weather-resistant HPL Laminate board (yellow), 15 mm
– sand slide made of stainless steel
tube with HPL laminate board (red) – step channel with sand wheel made of rubber with fabric insert
– sand elevator with transport container made of rubber and a 4 mm stainless steel chain, designed as a circumferential element so that the transport container does not enter adjacent play areas or free spaces can be drawn

Metal components: stainless steel.
The robinia wood is provided with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment reduces cracking. The modular add-on parts introduce their forces directly into the support posts via a special adapter attachment. The screw connections are secured against unauthorized loosening with cover caps.

Foundations (on site)
8 pcs. 0.40 x 0.40 x 0.40 m
Amount of concrete: 0.51 m³

Free fall height
0.60 m
