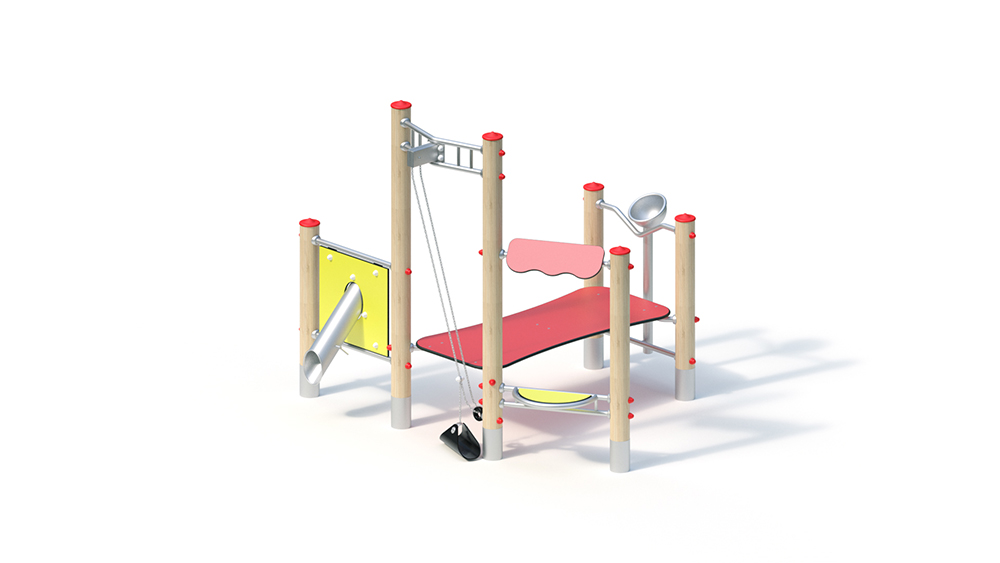

Sand mill

Key Attributes

Age Group


Area of Use

Public Playgrounds


Manual activity

Suitable for

Suitable for
children from 2 years old,
public playgrounds etc.,
social / manual activities

Techincal Specifications

Lifting Device


Total Length

2.15 m

Total Width

2.45 m

Total Height

2.10 m

Minimum Space Length

5.15 m

Minimum Space Width

5.45 m

Minimum Space Height

2.10 m

Heaviest Single Piece

35.00 kg

(Total) Weight

200.00 kg

Free Height of Fall

0.60 m

Platform Heights



Foundation 1

6 pieces - 0.40 x 0.40 x 0.40 m volume: 0.07 m3

Foundation 2


Foundation 3


Foundation 4


Foundation 5


Foundation 6



Number of Installers

2 pers.

Assembly Time

2 h

Assembly Details

Assembly time 2 fitters 2 hours each (without foundation creation)

Technical Data

Technical data
Floor area: 2.15 x 2.45 m
Minimum space: 5.15 x 5.45 m (22 m²)
Total height: 2.10 m
Weight: 35 kg heaviest individual part
200 kg in total

post Support post made of Robinia plywood, milled cylindrically, Ø 120 mm. Unprotected end grain surfaces are covered with non-detachable post caps made of stainless steel.
Pipe stand made of stainless steel for the foundation and mounting of robinia round wood posts, Ø 120 mm, below the playing level.

– table / awning: made of colored, highly weather-resistant HPL laminate board 20/15 mm
– pouring pipe wall made of yellow, highly weather- resistant HPL laminate board with sand pouring pipe including shut-off
flap , fastening between stainless steel pipes Ø 33.7 x 2 mm – sand elevator with transport container made of rubber and a 4 mm stainless steel chain, designed as a circumferential element so that the transport container cannot be pulled into adjacent play areas or open spaces
– sand pouring pipe with hemisphere made of stainless steel

Metal components: stainless steel.
The robinia wood is provided with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment reduces cracking. The modular add-on parts introduce their forces directly into the support posts via a special adapter attachment. The screw connections are secured against unauthorized loosening with cover caps.

Foundations (on site)
6 pcs. 0.40 x 0.40 x 0.40 m
Amount of concrete: 0.38 m³

Free fall height
0.60 m
