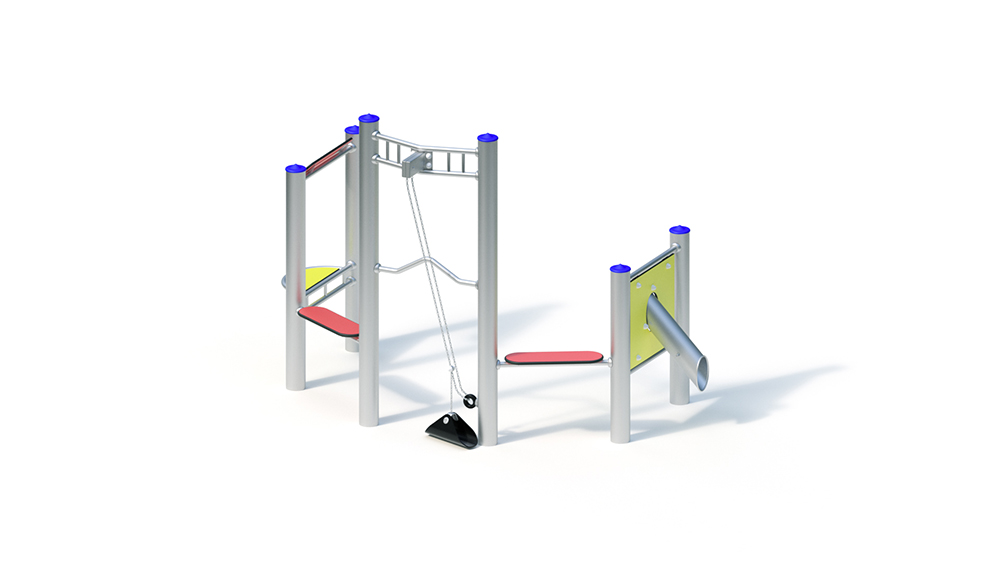

Sand mill
Key Attributes
Age Group
2+
Area of Use
Public Playgrounds
Activity
Manual activity
Suitable for
Suitable for
children from 2 years old,
public playgrounds etc.,
social / manual activities
Techincal Specifications
Lifting Device
-
Total Length
2.85 m
Total Width
1.60 m
Total Height
2.00 m
Minimum Space Length
5.85 m
Minimum Space Width
4.60 m
Minimum Space Height
2.00 m
Heaviest Single Piece
25.00 kg
(Total) Weight
170.00 kg
Free Height of Fall
0.60 m
Platform Heights
-
Foundations
Foundation 1
6 pieces - 0.40 x 0.40 x 0.40 m volume: 0.07 m3
Foundation 2
-
Foundation 3
-
Foundation 4
-
Foundation 5
-
Foundation 6
-
Assembly
Number of Installers
2 pers.
Assembly Time
2 h
Assembly Details
Assembly time 2 fitters 2 hours each (without foundation creation)
Technical Data
Technical data
Floor area: 1.60 x 2.85 m
Minimum space: 4.60 x 5.85 m (21 m²)
Total height: 2.00 m
Weight: 25 kg heaviest individual part
170 kg in total
Support
posts Support posts made of stainless steel tube Ø 120 mm, covered with non-detachable post caps made of stainless steel (blue / RAL 5015).
Attachments
– bulk pipe wall of yellow, highly weather resistant HPL plate with sand pouring tube including butterfly valve, mounting between stainless steel tubes Ø 33.7 x 2 mm
– Ironing railings, abrollverhindernd, stainless steel pipe, Ø 33.7 x 2 mm
– Table highly weather resistant HPL laminate (yellow ), 15 mm
– awning highly weather-resistant HPL laminate (red) 15 mm
– the seat: of highly weather-resistant HPL laminate (red), 20 mm
– sand lift, transport container, rubber and a 4 mm stainless steel chain, designed as a revolving member so that the transport container cannot be pulled into adjacent play areas or open spaces
Metal components: stainless steel.
The modular add-on parts introduce their forces directly into the support posts via a special adapter attachment. The screw connections are secured against unauthorized loosening.
Foundations (on site)
6 pcs. 0.40 x 0.40 x 0.40 m
Amount of concrete: 0.38 m³
Free fall height
0.60 m
