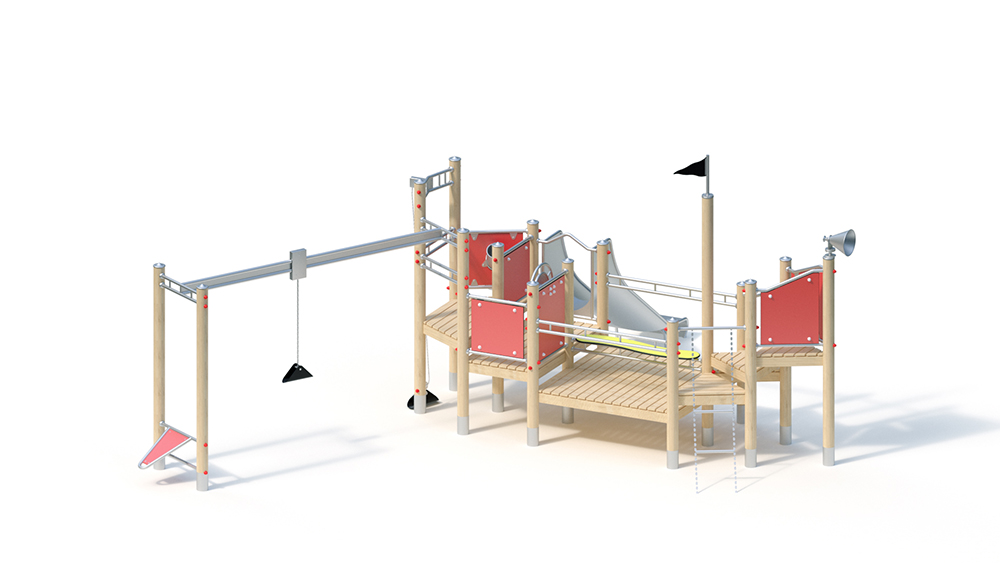

Sand freighter

5+

Public Playgrounds

Slide

Suitable for ages 5+,
public playgrounds,
social / manual activities

-

6.85 m

6.40 m

3.15 m

10.35 m

9.40 m

3.15 m

75.00 kg

850.00 kg

1.20 m

0.60 m, 0.80 m, 1.00 m, 1.20 m

16 pieces - 0.40 x 0.40 x 0.40 m volume: 0.07 m3

1 piece - 0.75 x 0.40 x 0.40 m volume: 0.12 m3

-

-

-

-

2 pers.

8 h

Assembly time 2 fitters 8 hours each (without foundation creation)

Technical data
Floor area: 6.40 x 6.85 m
Minimum space: 9.40 x 10.35 m (55 m²)
Total height: 3.15 m
Platform height: 0.60 to 1.20 m Slide installation height
: 0.80 m
Sitting height: 0.90 m
slide inclination: 36 °
slide width: 0.60 m
slide plate thickness: 2.5 mm

Support
post Support post made of Robinia plywood, milled cylindrically, Ø 120 mm. Unprotected end grain surfaces are covered with non-detachable post caps made of stainless steel.
Pipe stand made of stainless steel for the foundation and mounting of robinia round wood posts, Ø 120 mm, below the playing level.

Platform
floor Platform floor made of boards, 30 mm thick and all-round square timber beams 45 x 100 mm. The dried robinia lumber is planed, chamfered and free from rotten branches. Non-positive floor fastening thanks to special stainless steel brackets with a continuous bolt connection.

Attachments
– Tandem railing made of stainless steel tube, Ø 33.7 x 2 mm
– Panel balustrade made of colored, highly weather-resistant HPL laminate board, fastening between stainless steel tubes Ø 33.7 x 2 mm
– Step railing made of stainless steel tube, Ø 33.7 x 2 mm
– Chain ladder with stainless steel rungs
– Megaphone can be rotated horizontally 360 °
– Steering wheel: rotatable with snap-in
– Pouring pipe wall made of colored, highly weather-resistant HPL laminate
board with sand pouring pipe including shut-off flap – Sand elevator with transport container made of rubber and a 4 mm stainless steel chain, designed as a circumferential element so that the transport container does not enter adjacent play areas or free spaces can be drawn
– Transport
rail made of stainless steel with sand transport trolley – Sand slide made of stainless steel tube with colored, highly weather-
resistant HPL laminate
board
– Counter, wave-shaped, made of colored, highly weather-resistant HPL laminate board , 20 mm – Flag made of rubber with fabric insert for attachment to the post – Add-on trough slide, 0.60 m wide, one-piece stainless steel construction, sheet metal thickness: 2.5 mm, with anti-roll fall protection above the single seat part

For your planning, please note that stainless steel slides are oriented to the north-east due to the possible heating of the slide surface or are in the partial shade of trees.

Metal components: stainless steel. The robinia wood is provided with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment reduces cracking. The modular add-on parts introduce their forces directly into the support posts via a special adapter attachment. The screw connections are secured against unauthorized loosening with cover caps.

Foundations (on site)
16 pcs. 0.40 x 0.40 x 0.40 m
1 pc. 0.40 x 0.75 x 0.40 m
Amount of concrete: 1.14 m³

Free fall height
1.20 m
