0-32620-000

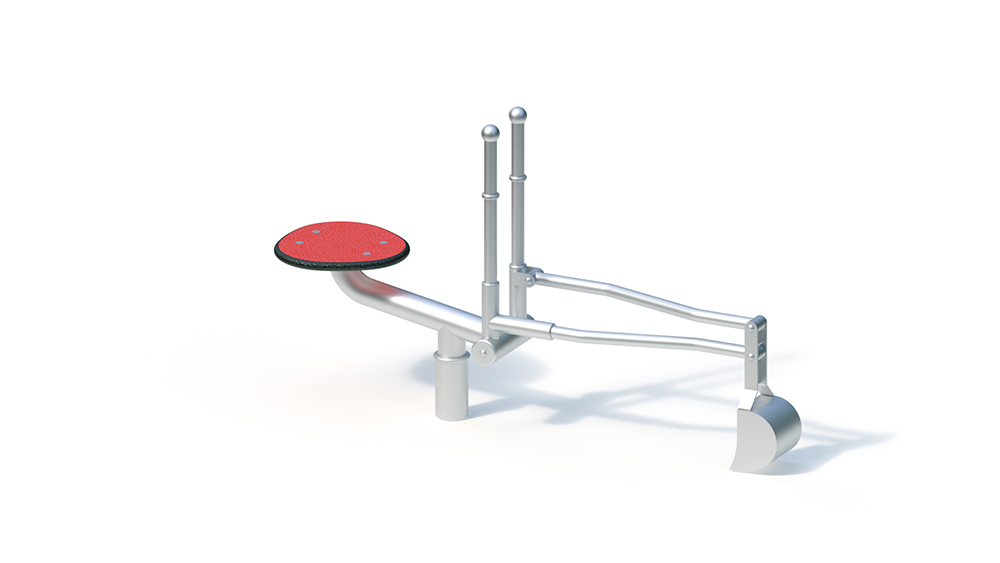

Sand dredger

Key Attributes

Age Group

3+

Area of Use

Public Playgrounds

Activity

Manual

Suitable for

Suitable for
children from 3 years,
public playgrounds etc.,
manual activities.

Techincal Specifications

Lifting Device

-

Total Length

0.30 m

Total Width

1.30 m

Total Height

0.72 m

Minimum Space Length

4.80 m

Minimum Space Width

4.80 m

Minimum Space Height

0.72 m

Heaviest Single Piece

-

(Total) Weight

30.00 kg

Free Height of Fall

0.40 m

Platform Heights

-

Foundations

Foundation 1

1 piece - 0.30 x 0.30 x 0.40 m volume: 0.04 m3

Foundation 2

-

Foundation 3

-

Foundation 4

-

Foundation 5

-

Foundation 6

-

Assembly

Number of Installers

-

Assembly Time

-

Assembly Details

The assembly time is delivered pre-assembled in one piece

Technical Data

Technical data
Floor area: 0.30 x 1.30 m
Minimum space: Ø 4.80 m (18 m²)
Height: 0.72 m
Action radius: 0.76 m
Surface: play sand
Weight: 30 kg in total

Stainless steel construction with self-lubricating roller and slide bearings.
Seat: high pressure laminate 20 mm.

Foundation (on site)
1 pc. 0.30 x 0.30 x 0.40 m
Amount of concrete: 0.04 m³

Free fall
0.40 m
