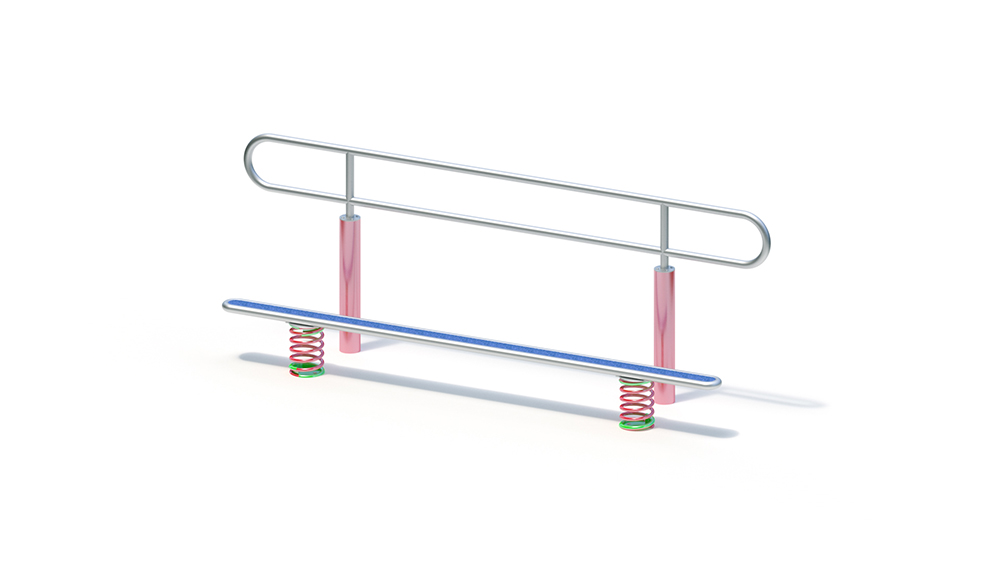

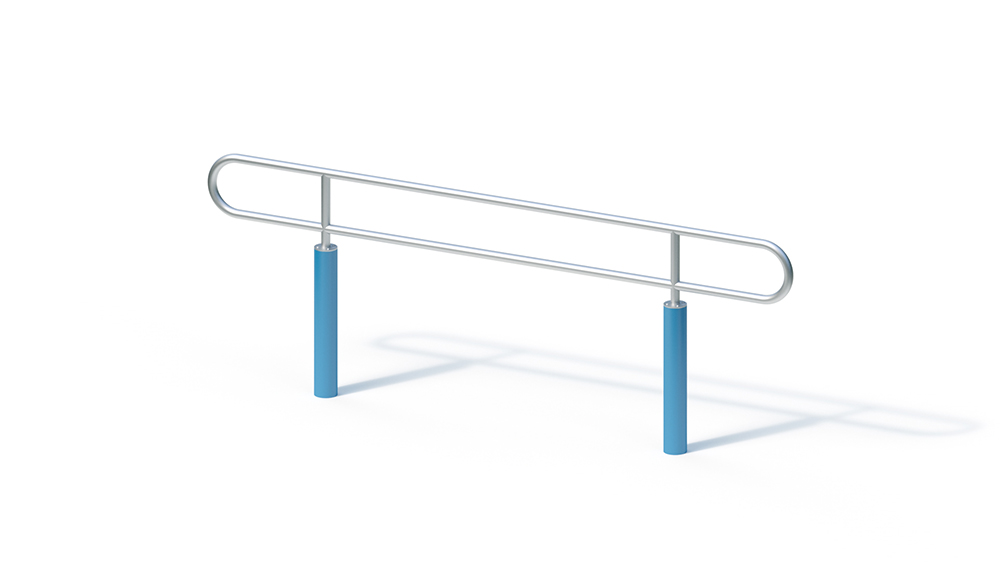

Safety and stretching railings
Key Attributes
Age Group
18+
Area of Use
Trim Paths
Activity
Sport
Suitable for
Suitable for
adult
trim trails
sporting activities
Techincal Specifications
Lifting Device
-
Total Length
3.35 m
Total Width
0.15 m
Total Height
1.25 m
Minimum Space Length
6.35 m
Minimum Space Width
3.15 m
Minimum Space Height
1.25 m
Heaviest Single Piece
20.00 kg
(Total) Weight
60.00 kg
Free Height of Fall
1.25 m
Platform Heights
-
Foundations
Foundation 1
2 pieces - 0.50 x 0.50 x 0.60 m volume: 0.15 m3
Foundation 2
-
Foundation 3
-
Foundation 4
-
Foundation 5
-
Foundation 6
-
Assembly
Number of Installers
2 pers.
Assembly Time
1 h
Assembly Details
Assembly time 2 fitters 1 hour (without foundation creation)
Technical Data
Technical data
Floor area: 0.15 x 3.35 m
Minimum space: 3.15 x 6.35 m (18 m²)
Total height: 1.25 m
Weight: 20 kg heaviest individual part
60 kg in total
Steel
tube support post Ø 121 x 4 mm, hot-dip galvanized, powder-coated.
Post color optionally: red / RAL 2002, blue / RAL 5015, white / RAL 9010 and black / RAL 9005
Railing: welded construction made of stainless steel tube 48.3 x 2 / 42.4 x 2 mm, material 1.4301
Fastening and functional components : stainless steel
Station sign (see item no. 0-57423-000) can be supplied at an additional cost.
Foundations (on site)
2 pcs. 0.50 x 0.50 x 0.60 m
amount of concrete: 0.30 m³
Free fall height
1.25 m
