Key Attributes

Age Group


Area of Use

Public Playgrounds



Suitable for

Suitable for
all age groups,
public playgrounds, etc.

Techincal Specifications

Lifting Device


Total Length

1.75 m

Total Width

1.50 m

Total Height

1.50 m

Minimum Space Length

4.75 m

Minimum Space Width

4.50 m

Minimum Space Height

1.50 m

Heaviest Single Piece

40.00 kg

(Total) Weight

295.00 kg

Free Height of Fall


Platform Heights



Foundation 1

6 pieces - 0.40 x 0.40 x 0.40 m volume: 0.07 m3

Foundation 2


Foundation 3


Foundation 4


Foundation 5


Foundation 6



Number of Installers

2 pers.

Assembly Time

2 h

Assembly Details

Assembly time 2 fitters 2 hours each (without foundation creation)

Technical Data

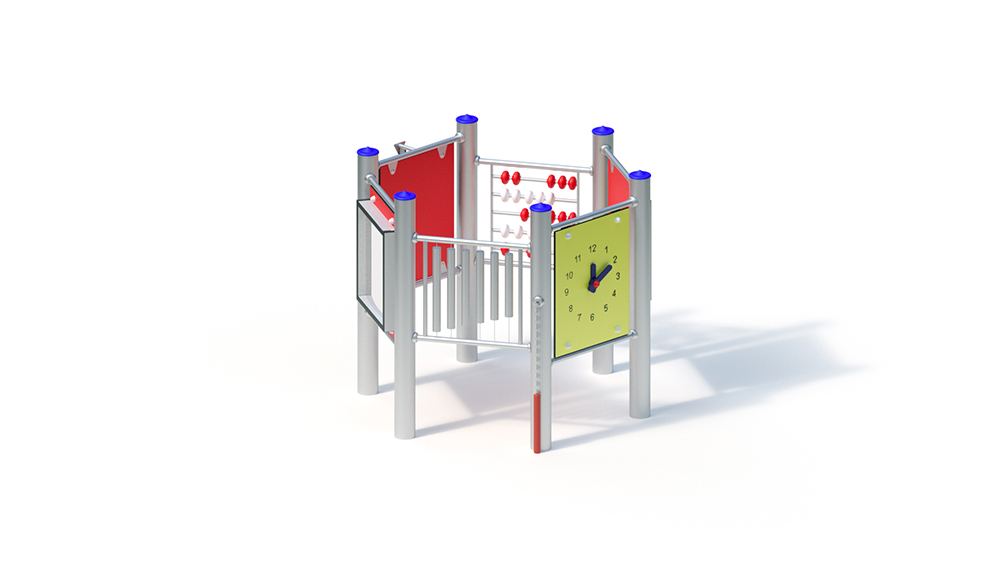

Technical data
Total height: 1.50 m
Base area: 1.50 x 1.75 m
Minimum space : Ø 4.75 m (18 m²)

posts Support posts made of stainless steel tube Ø 120 mm covered with non-detachable post caps made of stainless steel.

– panel parapet made of colored, highly weather-resistant HPL laminate panel (yellow). Fastening between stainless steel tubes Ø 33.7 × 2 mm
. Clock hands made of blue HPL laminate board for manual setting of the time – Concave mirror made of high-gloss polished stainless steel in an HPL frame.
– Concave / convex mirror made of high-gloss polished stainless steel in an HPL frame.
– Wheel of fortune wall made of HPL laminate board, 15 mm
– Slide rule: elements made of polyamide, Ø 80 mm
– Sound tubes made of stainless steel, suspended on wire ropes. Fixing between stainless steel tubes Ø 33.7 x 2 mm. Including sound stick made of PVC, attached to a post by means of a stainless steel chain

Metal components: stainless steel. All robinia woods are unimpregnated and treated with linseed oil varnish against dust and fingerprints. The modular add-on parts introduce their forces directly into the support posts via a special adapter attachment. The screw connections are secured against unauthorized loosening with cover caps.

Foundations (on site)
6 pcs. 0.40 x 0.40 x 0.40 m
Amount of concrete: 0.58 m³
