Key Attributes

Age Group


Area of Use

Public Playgrounds



Suitable for

Suitable for
all age groups,
public playgrounds, etc.

Techincal Specifications

Lifting Device


Total Length

1.75 m

Total Width

1.50 m

Total Height

1.50 m

Minimum Space Length

4.75 m

Minimum Space Width

4.50 m

Minimum Space Height

1.50 m

Heaviest Single Piece

40.00 kg

(Total) Weight

295.00 kg

Free Height of Fall


Platform Heights



Foundation 1

6 pieces - 0.40 x 0.40 x 0.40 m volume: 0.07 m3

Foundation 2


Foundation 3


Foundation 4


Foundation 5


Foundation 6



Number of Installers

2 pers.

Assembly Time

2 h

Assembly Details

Assembly time 2 fitters 2 hours each (without foundation creation)

Technical Data

Technical data
Total height: 1.50 m
Base area: 1.50 x 1.75 m
Minimum space : Ø 4.75 m (18 m²)

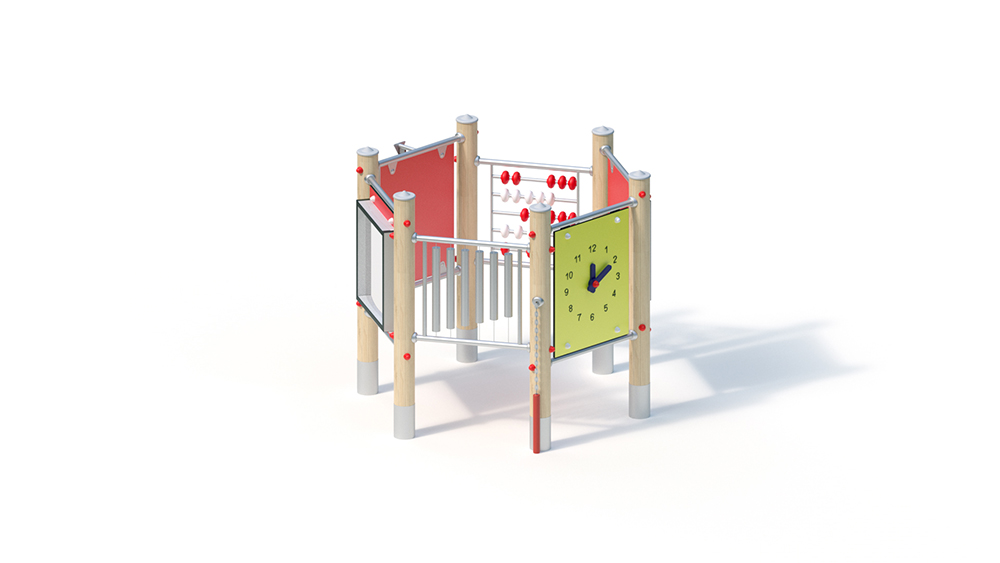

post Support post made of robinia plywood, milled cylindrically, Ø 12 cm. Unprotected end grain surfaces are covered with non-detachable post caps made of stainless steel.
Pipe stand made of stainless steel for the foundation and mounting of robinia round wood posts, Ø 12 cm, below the playing level.

– Parapet made of colored, highly weather-resistant HPL laminate board (yellow), fastening between stainless steel tubes Ø 33.7 × 2 mm, clock hands made of
laminate board blue for manual setting of the time – concave mirror made of highly polished stainless steel in HPL frame – convex mirror made highly polished stainless steel in HPL frame
– wheel of fortune wall made of HPL laminate board, 15 mm
– slide rule: elements made of polyamide, Ø 80 mm
– sound tubes made of stainless steel, suspended on wire ropes, fastening between stainless steel tubes Ø 33.7 x 2 mm; Including sound stick made of PVC, attached to a post by means of a stainless steel chain

Metal components: stainless steel.
The robinia wood is provided with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment reduces cracking. The modular add-on parts introduce their forces directly into the support posts via a special adapter attachment. The screw connections are secured against unauthorized loosening with cover caps.

Foundations (on site)
6 pcs. 0.40 x 0.40 x 0.40 m
Amount of concrete: 0.58 m³
