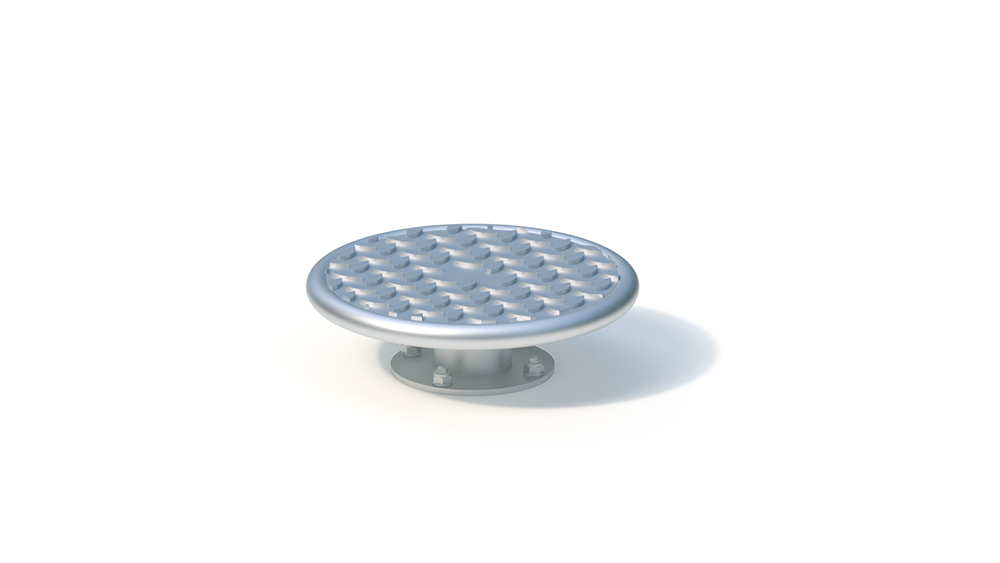

Rotating disk (0.45)

Key Attributes

Age Group


Area of Use

Public Playgrounds



Suitable for

Suitable for
children aged 3 and over,
public playgrounds, etc.
Exercise activities.

Techincal Specifications

Lifting Device


Total Length

0.49 m

Total Width

0.49 m

Total Height

0.15 m

Minimum Space Length

3.49 m

Minimum Space Width

3.49 m

Minimum Space Height

0.15 m

Heaviest Single Piece

25.00 kg

(Total) Weight

30.00 kg

Free Height of Fall

0.15 m

Platform Heights



Foundation 1

1 piece - 0.35 x 0.35 x 0.60 m volume: 0.08 m3

Foundation 2


Foundation 3


Foundation 4


Foundation 5


Foundation 6



Number of Installers

1 person

Assembly Time

1 h

Assembly Details

Assembly time 1 fitter 1 hour (without foundation creation)

Technical Data

Technical data
Base area: Ø 0.49 m
Minimum space: Ø 3.49 m (10 m²)
Height: 0.15 m
Weight: 25 kg heaviest individual part
30 kg in total

Rotating base: profiled stainless steel
sheet. Rolling bearings: tamper-proof and protected against dirt.
Anchoring with flange ring.

Foundation (on site)
1 pc. 0.35 x 0.35 x 0.60 m
Amount of concrete: 0.13 m³

Free fall height
0.15 m

Please note:
Despite the free fall height of less than 0.60 m, a shock-absorbing surface is necessary in the area of ​​the impact surface, because the device forces the user to move. The materials “topsoil”, “water-bound ceiling”, “lawn”, “wood chips”, “bark mulch”, “sand”, “gravel” according to the definition of DIN EN 1176-1 and “synthetic fall protection” are permitted. For all of the named types of soil, care must be taken during maintenance that their fall protection properties are not lost through compaction or wear; In the case of synthetic fall protection, the dangers for ligaments and tendons should be weighed up due to the reduced sliding ability.

A foundation anchor (item no. 1090219) is available for a surcharge for easy installation at the same height in synthetic fall protection. Even if the turntable is only temporarily dismantled, the floor opening is closed at the same height with a corresponding stainless steel plate or HPL plate.
