Rotating ball (0.40 m)

3+

Public Playgrounds

Physical

Suitable for
children aged 3 and over,
public playgrounds, etc.
Exercise activities.

-

0.40 m

0.40 m

0.60 m

3.40 m

3.40 m

0.59 m

35.00 kg

40.00 kg

0.60 m

-

1 piece - 0.50 x 0.50 x 0.50 m volume: 0.13 m3

-

-

-

-

-

1 person

1 h

Assembly time 1 fitter 1 hour (without foundation creation)

Technical data
Total height: 0.59 m
Base: Ø 0.40 m
Minimum space: Ø 3.40 m (9 m²)
Weight: 35 kg Heaviest individual part
40 kg in total

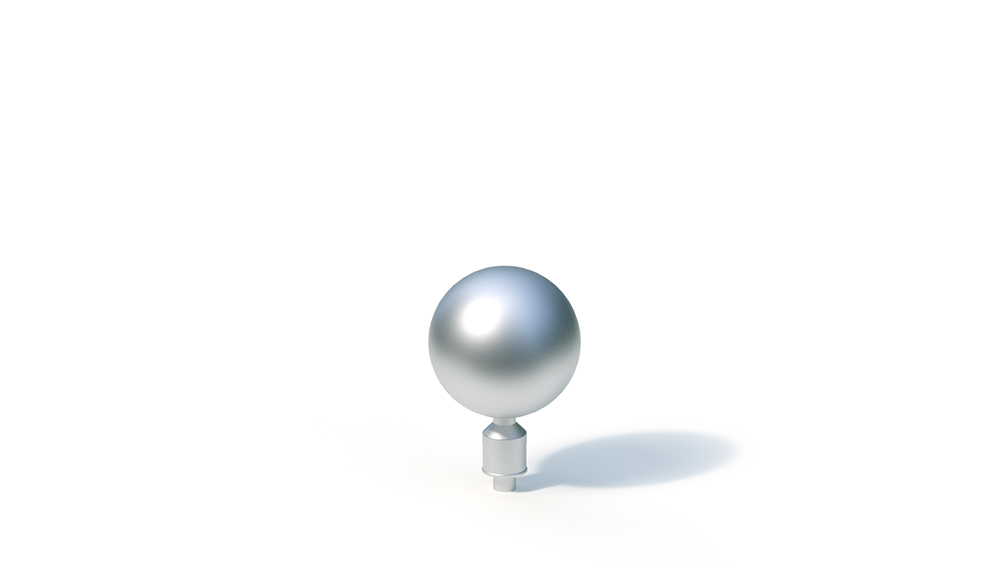

Rotary ball: hollow ball made of stainless steel Ø 400 x 2 mm on a standpipe 60.3 x 3.65 mm,
roller bearing: tamper-proof and protected against dirt.
Anchoring with flange ring.

Foundation (on site)
1 pc. 0.50 x 0.50 x 0.50 m
amount of concrete: 0.13 m³

Free fall height
0.60 m

Please note:
Under all playground equipment that causes forced movement of the user (e.g. swings, slides, seesaw devices, cable cars, carousels, etc.), shock-absorbing floors must be provided over the entire impact area.

A foundation anchor (item no. 1090219) is available for a surcharge for easy installation at the same height in synthetic fall protection. Even if the turntable is only temporarily dismantled, the floor opening is closed at the same height with a corresponding stainless steel plate or HPL plate.
