Rotary Squirrel (0.45)
Key Attributes
Age Group
3+
Area of Use
Public Playgrounds
Activity
Physical
Suitable for
Suitable for
children aged 3 and over,
public playgrounds, etc.
Exercise activities.
Techincal Specifications
Lifting Device
-
Total Length
0.49 m
Total Width
0.49 m
Total Height
0.75 m
Minimum Space Length
3.49 m
Minimum Space Width
3.49 m
Minimum Space Height
0.75 m
Heaviest Single Piece
30.00 kg
(Total) Weight
35.00 kg
Free Height of Fall
0.15 m
Platform Heights
-
Foundations
Foundation 1
1 piece - 0.35 x 0.35 x 0.60 m volume: 0.08 m3
Foundation 2
-
Foundation 3
-
Foundation 4
-
Foundation 5
-
Foundation 6
-
Assembly
Number of Installers
1 person
Assembly Time
1 h
Assembly Details
Assembly time 1 fitter 1 hour (without foundation creation)
Technical Data
Technical data
Base area: Ø 0.49 m
Minimum space: Ø 3.49 m (10 m²)
Height: 0.75 m
Weight: 30 kg heaviest individual part
35 kg in total
Rotating base and structure: stainless steel.

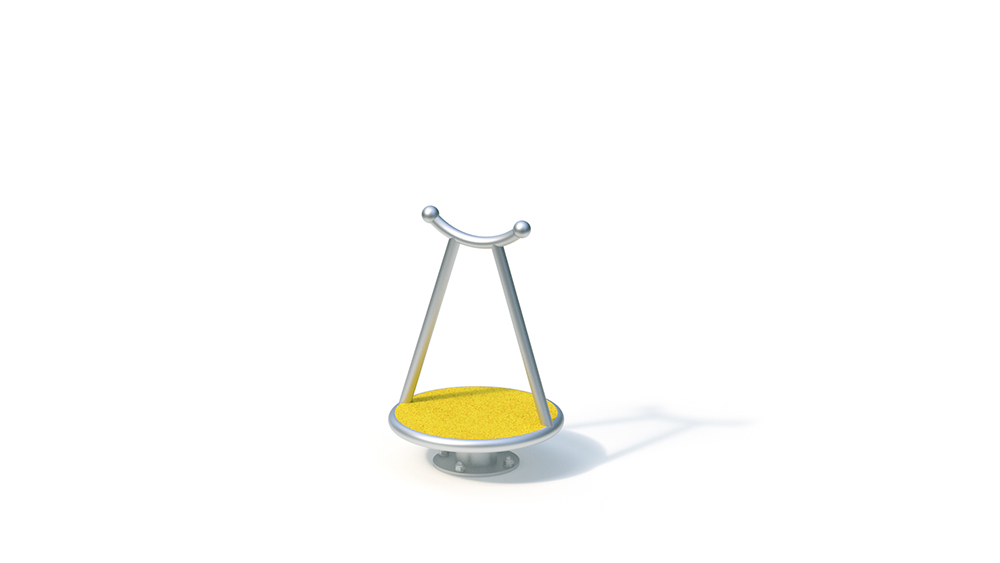

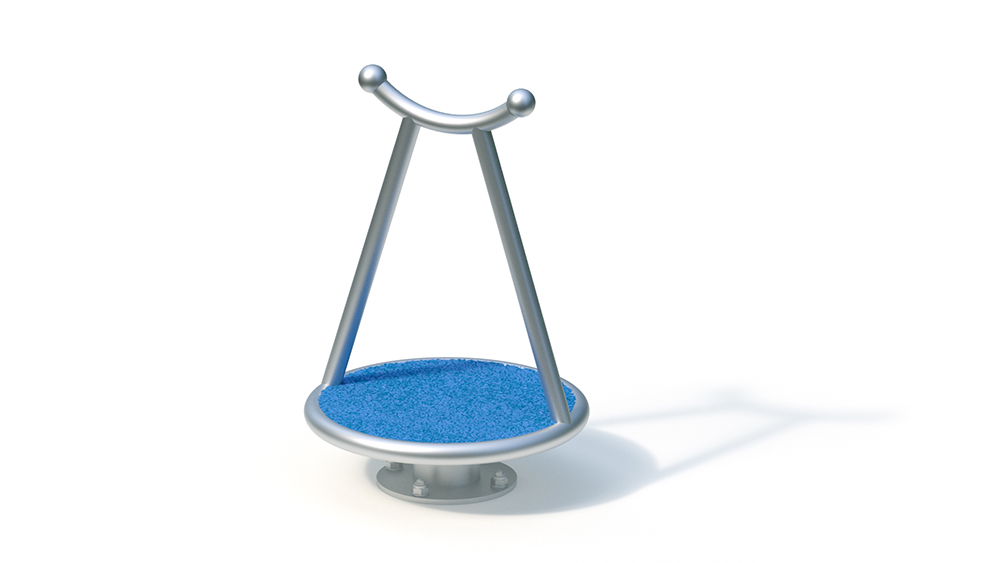

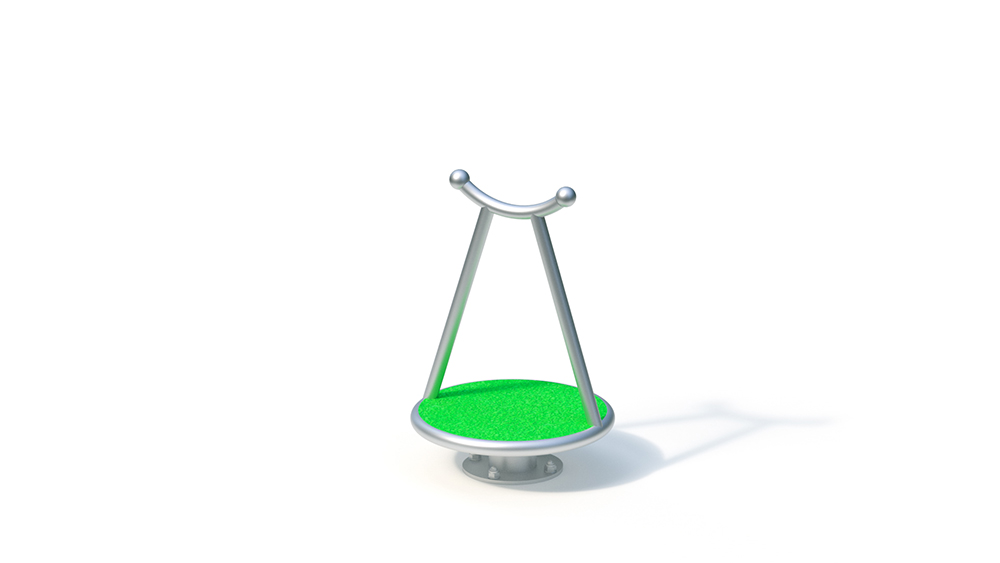

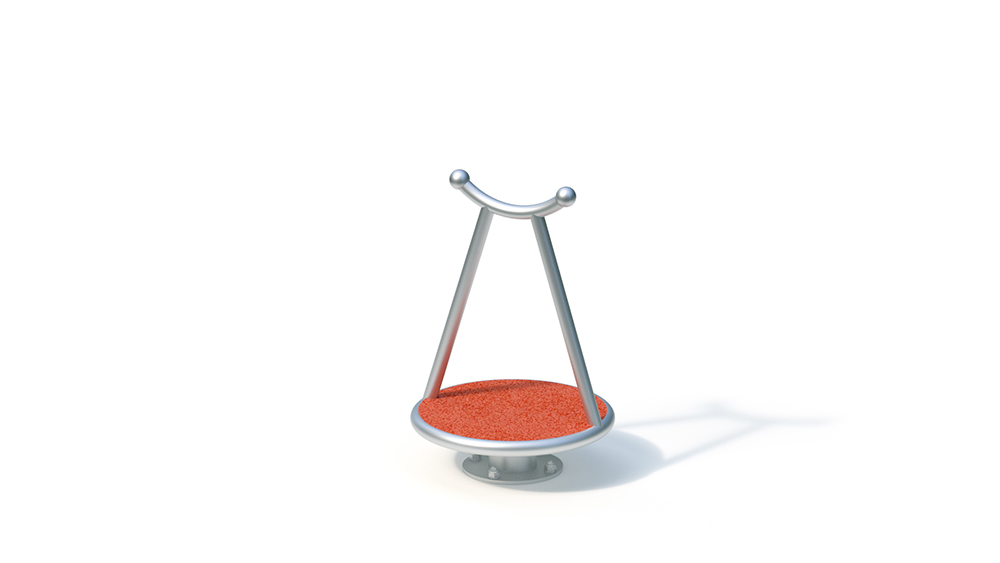

The surface of the rotating floor is equipped with rubber granulate. Granulate color optionally: red, green, blue and yellow.
Rolling bearings: tamper-proof and protected against dirt.
Anchoring with flange ring.
Foundation (on site)
1 pc. 0.35 x 0.35 x 0.60 m
Amount of concrete: 0.13 m³
Free fall height
0.15 m
Please note:
Under all playground equipment that causes forced movement of the user (e.g. swings, slides, seesaw devices, cable cars, carousels, etc.), shock-absorbing floors must be provided over the entire impact area.
A foundation anchor (item no. 1090219) is available for a surcharge for easy installation at the same height in synthetic fall protection. Even if the turntable is only temporarily dismantled, the floor opening is closed at the same height with a corresponding stainless steel plate or HPL plate.
