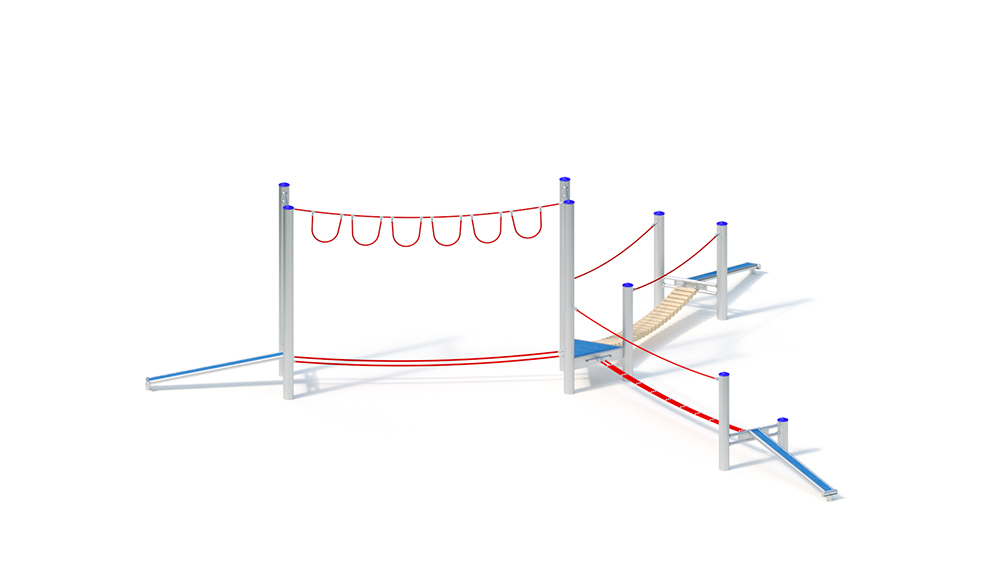

Rope combination
Key Attributes
Age Group
5+
Area of Use
Public Playgrounds
Activity
Balance
Suitable for
Suitable for
children from 5 years of age,
public playgrounds, etc.
Exercise activities
Techincal Specifications
Lifting Device
-
Total Length
8.80 m
Total Width
6.85 m
Total Height
2.35 m
Minimum Space Length
11.80 m
Minimum Space Width
9.85 m
Minimum Space Height
2.35 m
Heaviest Single Piece
30.00 kg
(Total) Weight
420.00 kg
Free Height of Fall
0.40 m
Platform Heights
0.40 m
Foundations
Foundation 1
4 pieces - 0.40 x 0.40 x 0.40 m volume: 0.07 m3
Foundation 2
1 piece - 1.40 x 1.40 x 0.40 m volume: 0.79 m3
Foundation 3
1 piece - 1.40 x 1.00 x 0.40 m volume: 0.56 m3
Foundation 4
-
Foundation 5
-
Foundation 6
-
Assembly
Number of Installers
2 pers.
Assembly Time
4 h
Technical Data
Technical data
Total height: 2.35 m
Base area: 6.85 x 8.80 m
Minimum space: 9.85 x 11.80 m (60 m²)
Platform height: 0.40 m
Weight: 30 kg Heaviest single part
420 kg in total
Support
posts Support posts made of stainless steel tube Ø 120 x 3 mm, covered with non-detachable post caps made of stainless steel (blue / RAL 5015).
Pedestal
triangular steel floor made of stainless steel with tensioning devices for suspension belt and balancing ropes; With a covering made of colored EPDM rubber granulate, glass bead blasted, non-positive fastening to the post with a continuous bolted connection.
Attachments
– 1.60m balancing bridge: welded stainless steel construction with tandem railing and foundation anchors, balancing surface covered with EPDM rubber granulate (color blue)
– SMB suspension tape made of 3 Hercules ropes that run next to one another, approx. 90 mm wide, with a handrail made of 18 mm Hercules rope (Color red)
– footbridge: catwalk made of wooden rungs with approx. 40 mm distance between rungs, with two handrail ropes made of Hercules
rope Ø 18 mm (color red) – two parallel balancing ropes: SMB rope construction made of Hercules rope Ø 22 mm (color red)
– hanging loop rope on tandem traverse / post made of Hercules rope Ø 18 mm (color red)
Metal components: stainless steel.
The modular add-on parts introduce their forces directly into the support posts via a special adapter attachment. The screw connections are secured against unauthorized loosening.
This device is only available in the version with stainless steel posts.
Foundations (on site)
3 pcs. 0.30 x 0.30 x 0.40 m
4 pcs. 0.40 x 0.40 x 0.40 m
1 pc. 1.40 x 1.00 x 0.40 m
1 pc. 1.40 x 1.40 x 0.40 m
amount of concrete: 1.71 m³
Free fall
0.40 m
