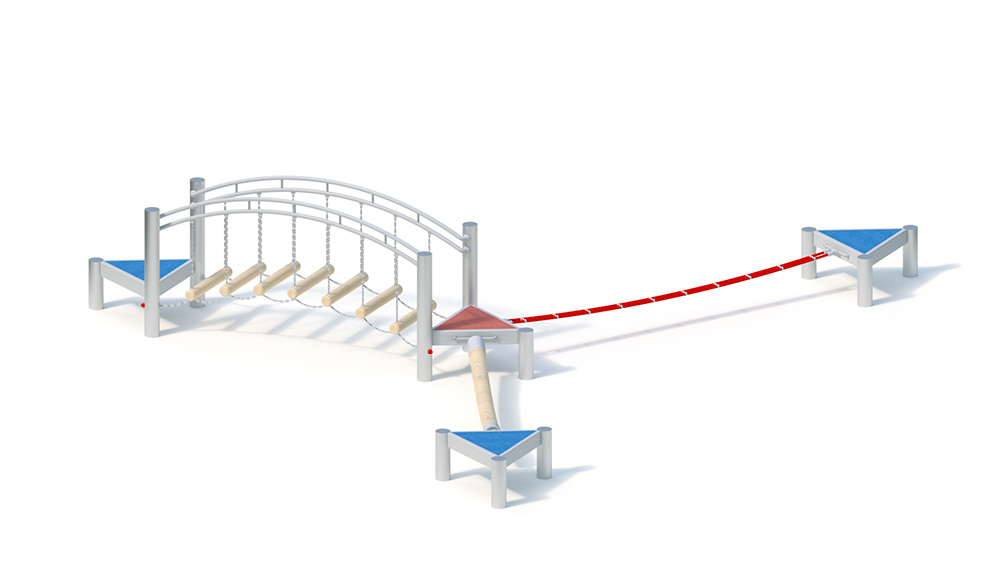

Rope combination

5+

Public Playgrounds

Balance

Suitable for
children from 5 years of age,
public playgrounds, etc.
Exercise activities

-

6.60 m

5.55 m

1.30 m

9.60 m

8.55 m

1.30 m

60.00 kg

340.00 kg

0.60 m

0.40 m

12 pieces - 0.40 x 0.40 x 0.40 m volume: 0.07 m3

-

-

-

-

-

2 pers.

3 h

Technical data
Total height: 1.30 m
Base area: 5.55 x 6.60 m
Minimum space: 8.55 x 9.60 m (48 m²)
Platform heights: 0.40 m
Weight: 60 kg, heaviest individual part,
340 kg in total

Support
posts Support posts made of stainless steel tube Ø 120 mm, covered with non-detachable post caps made of stainless steel.

Platform floor
triangular steel floor made of stainless steel; Glass bead blasted, non-positive attachment to the post with a continuous bolt connection, with a covering made of colored rubber granulate.
Triangular steel floor made of stainless steel with tensioning devices for suspension belt and balancing ropes; Glass bead blasted, non-positive attachment to the post with a continuous bolt connection, with a covering made of colored rubber granulate.

Attachment parts – wobble arch on tandem traverse made of stainless steel tubing, running timbers made of robinia Ø 100 mm. Fine-linked handrail chains made of stainless steel.
– smb suspension belt made of 3 Hercules ropes that run side by side and are firmly connected, approx. 90 mm wide.
– smb balancing ropes approx. Ø125 mm, six-strand PP rope, hemp-colored, with PE end caps, galvanized fork connection.

Metal components: stainless steel, galvanized steel

The modular add-on parts introduce their forces directly into the support posts via a special adapter attachment. The screw connections are secured against unauthorized loosening.

This device is only available in the version with stainless steel posts.

Foundations (on site)
12 pcs. 0.40 x 0.40 x 0.40 m
amount of concrete: 0.77 m³

Free fall height
0.60 m
