Roller conveyor Ah 3.00 m

Key Attributes

Age Group


Area of Use

Public Playgrounds



Suitable for

Techincal Specifications

Lifting Device


Total Length

11.45 m

Total Width

1.05 m

Total Height

4.15 m

Minimum Space Length

13.45 m

Minimum Space Width

3.05 m

Minimum Space Height


Heaviest Single Piece

1155.00 kg

(Total) Weight

1155.00 kg

Free Height of Fall


Platform Heights



Foundation 1

1 piece - 1.20 x 0.40 x 0.40 m volume: 0.20 m3

Foundation 2


Foundation 3


Foundation 4


Foundation 5


Foundation 6



Number of Installers

2 pers.

Assembly Time

2 h

Assembly Details


Technical Data

Technical data
Base area: approx. 1.05 x 11.50 m
Minimum space: approx . 3.05 x 13.50
Extension height: 3.00 m Seat height: 3.10 m Slide inclination
: approx. 15 ° Tunnel
diameter: 0.96 m
Roll diameter: 50 mm. Sliding plate thickness
: 2.5 mm

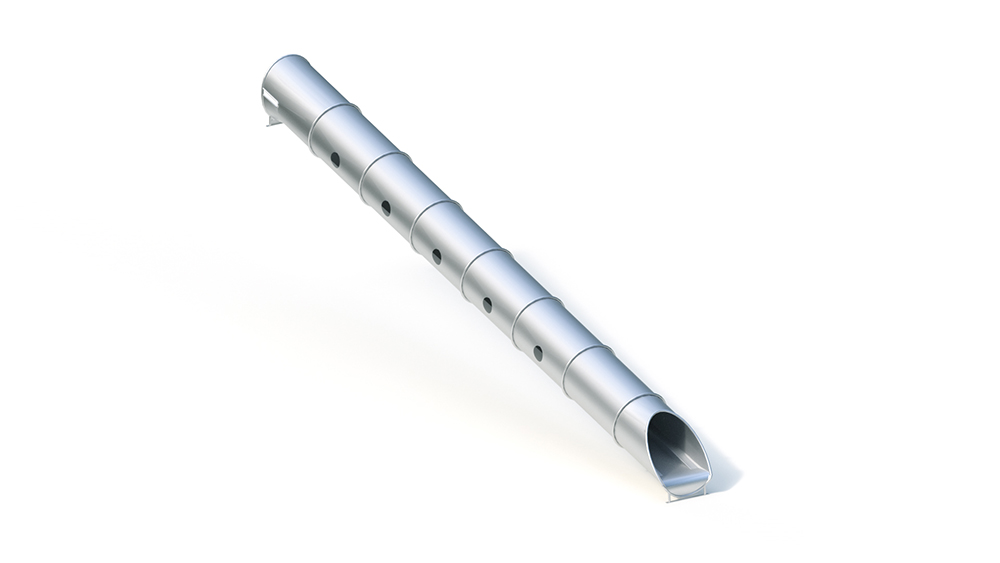

Roller conveyor segments with internal conveyor made of stainless steel, welded to a one-piece roller conveyor.
Handle openings on both sides in the single seat part. Light openings made of unbreakable polycarbonate.
Stainless steel rollers with roller bearings, Ø 50 mm.

In the area of ​​the flange on the seat, a suitable base (wooden platform or planks, concrete foundation, etc.) must be available on site for fastening.

For your planning, please note that stainless steel slides are oriented to the north-east due to the possible heating of the slide surface or are in the partial shade of trees.

Foundations (on site)
1 pc. 1.20 x 0.40 x 0.40 m
amount of concrete: 0.19 m³
