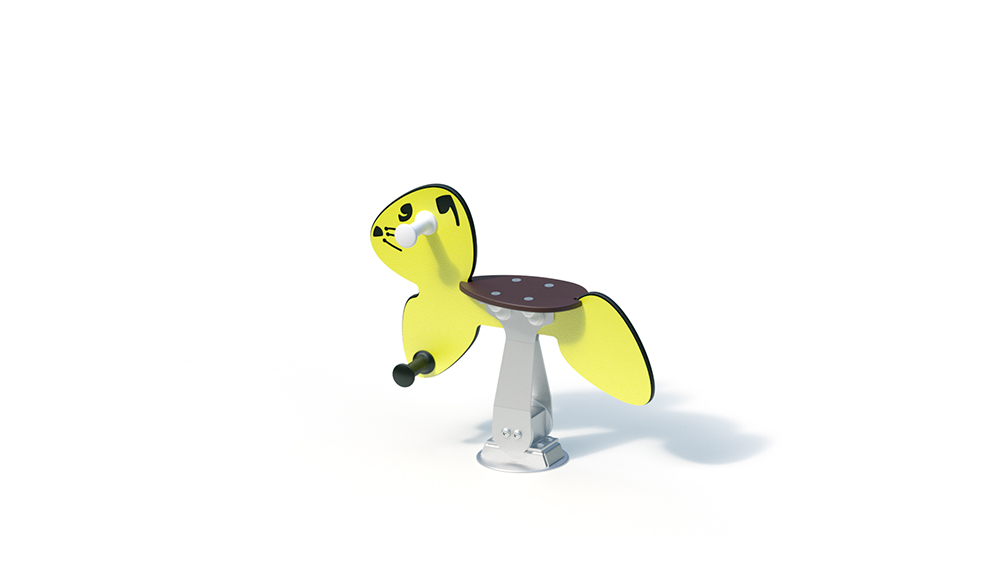

Rocker cat

Key Attributes

Age Group

1 - 6+

Area of Use

Supervised Playgrounds



Suitable for

Suitable for
children from 1 to 6 years,
supervised playgrounds,
exercise activities

Techincal Specifications

Lifting Device


Total Length

0.65 m

Total Width

0.25 m

Total Height

0.57 m

Minimum Space Length

2.85 m

Minimum Space Width

2.25 m

Minimum Space Height

0.57 m

Heaviest Single Piece


(Total) Weight

22.00 kg

Free Height of Fall

0.40 m

Platform Heights



Foundation 1

1 piece - 0.80 x 0.50 x 0.10 m volume: 0.04 m3

Foundation 2


Foundation 3


Foundation 4


Foundation 5


Foundation 6



Number of Installers


Assembly Time


Assembly Details

The assembly time is delivered pre-assembled in one piece

Technical Data

Technical data
Total height: 0.57 m
Base area: 0.25 x 0.65 m
Minimum space: 2.25 x 2.85 m (6 m²)
Seat height: 0.40 m
Weight: 22 kg in total

Rocker frame: stainless steel with Rosta rubber spring element
body made of highly weather-resistant HPL laminate board (yellow), 13 mm
seat plate made of highly weather-resistant HPL laminate board (brown), 13 mm, theft-proof screw connection
handles / footrests: polyamide (white / black) Ø51mm, with cover caps

Including ground anchor

Foundations (provided by customer)
If the soil is light (usually loose bulk material such as bark mulch, wood chips, sand, gravel), the base plate of the ground anchor must be covered with a foundation (0.80 x 0.50 x 0.10 m).
Amount of concrete: 0.04 m³

Free fall
0.40 m

Please note:
Under all playground equipment that causes a forced movement of the user (e.g. swings, slides, seesaw devices, cable cars, carousels, etc.), shock-absorbing floors must be provided over the entire impact area.
