Pyramid “Bedano”

Mikado pyramid >>Bedano<<
Order Number: 1.0050-EM
Stainless steel posts
Wood: Robinia

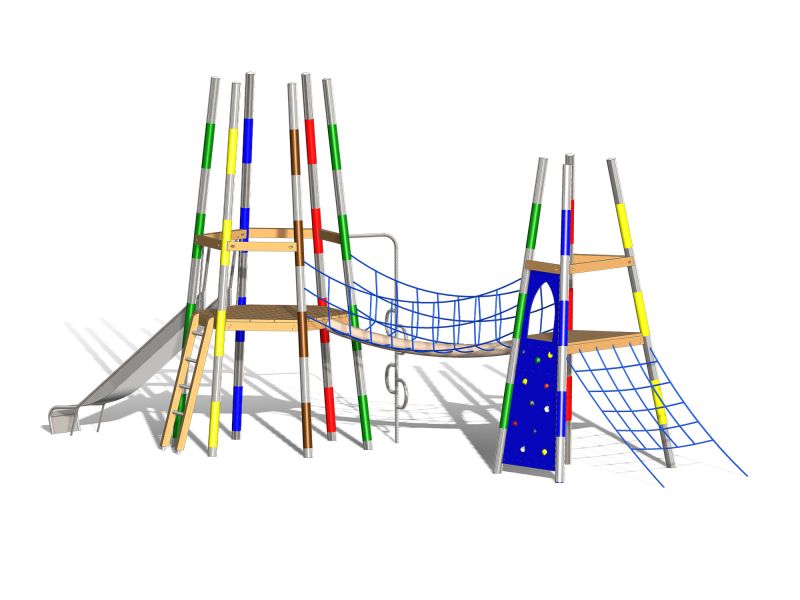

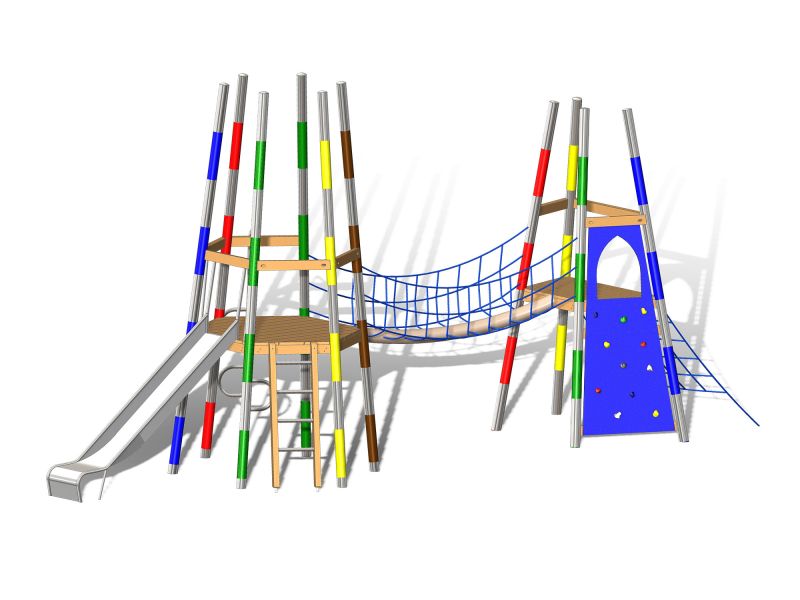

– One hexagon tower featuring six radial stainless steel posts that lean towards the center, segmentally lacquered in a Mikado design.
– One hexagon platform with an approximate diameter of 180cm and a height of 150cm.
– One ladder with stainless steel rungs.
– One box-shaped stainless steel slide.
– One zig-zag climbing pole.
– One jungle bridge made of Hercules ropes, approximately 300cm in length.
– One square tower with four radial stainless steel posts that lean towards the center, segmentally lacquered in a Mikado design.
– One trapeze platform measuring approximately 90x90x150cm, with a height of 150cm.
– One HPL climbing wall (optional standard color assortment) with a step-through frame and climbing grips made of synthetic resin.
– One diagonal climbing net made of Hercules ropes.
– Several railings and handrails.

Made in Germany!
All stainless steel posts have a diameter of 101.6mm and are segmentally lacquered in the Mikado design. The visible ends of the posts are conclusively welded to a stainless steel cap. The stainless steel surfaces are radiated with glass marbles to protect the environment.
The connection between the platform/railing and support posts is made through stainless steel press-in threaded sleeves. The platform is fixed using concentrically incorporated stainless steel brackets.
All wooden parts are made of Robinia, planed and chamfered. They are left untreated.
The connection point between the net/rope and support posts is made through specifically formed stainless steel forks and tensible stainless steel chains.
The nets are made of Hercules rope, and all connecting parts are made of stainless steel or galvanized. Only self-locking nuts are used.

Drying cracks are normal in all native hardwoods, even after appropriate storage and professional treatment. Therefore, drying cracks do not justify a warranty claim. (Refer to the supplementary sheet of the German Institute for Standardization EN 1176, Note on

Spiel-Bau GmbH
Alte Weinberge 21
14776 Brandenburg an der Havel
Phone: 03381 26140
Fax: 03381 261418

User Age3-8
Download Product Sheet

Technical Information


1247 x 577 cm

Fall Height Group

150 cm



stainless steel, wood
