0-57074-000

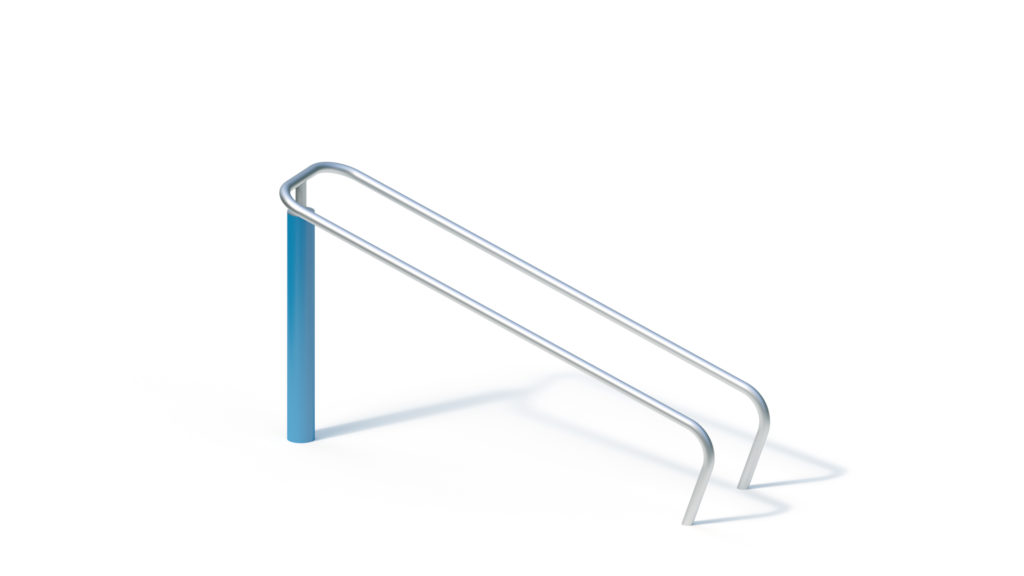

Push-up trainer

Key Attributes

Age Group

18+

Area of Use

Trim Paths

Activity

Sport

Suitable for

Suitable for
adult
trim trails etc.
sporting activities

Techincal Specifications

Lifting Device

-

Total Length

2.20 m

Total Width

0.60 m

Total Height

1.25 m

Minimum Space Length

5.20 m

Minimum Space Width

3.60 m

Minimum Space Height

1.25 m

Heaviest Single Piece

25.00 kg

(Total) Weight

45.00 kg

Free Height of Fall

1.25 m

Platform Heights

-

Foundations

Foundation 1

1 piece - 0.40 x 0.40 x 0.40 m volume: 0.07 m3

Foundation 2

1 piece - 0.80 x 0.30 x 0.40 m volume: 0.10 m3

Foundation 3

-

Foundation 4

-

Foundation 5

-

Foundation 6

-

Assembly

Number of Installers

2 pers.

Assembly Time

1 h

Assembly Details

Assembly time 2 fitters each 0.5 hours (without foundation creation)

Technical Data

Technical data
Floor area: 0.60 x 2.20 m
Minimum space: 3.60 x 5.20 m (17 m²)
Total height: 1.25 m
Weight: 25
kg Heaviest single part 45 kg in total

Steel
tube support post Ø 121 x 4 mm, hot-dip galvanized, powder-coated.
Post color optionally: red / RAL 2002, blue / RAL 5015, white / RAL 9010 and black / RAL 9005
Metal
components : Stainless steel station sign (see item no. 0-57424-000) can be supplied at an extra charge.

Foundations (on site)
1 pc. 0.80 x 0.30 x 0.40 m
1 pc. 0.40 x 0.40 x 0.40 m
Amount of concrete: 0.16 m³

Free fall height
1.25 m
