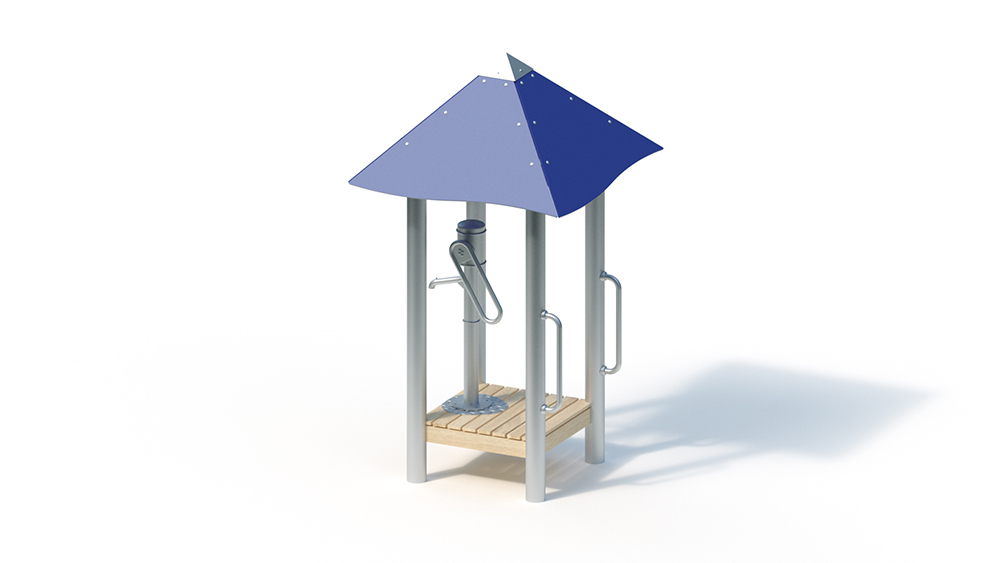

Pump house

Key Attributes

Age Group


Area of Use

Public Playgrounds



Suitable for

Techincal Specifications

Lifting Device


Total Length

1.45 m

Total Width

1.45 m

Total Height

2.70 m

Minimum Space Length

4.45 m

Minimum Space Width

4.45 m

Minimum Space Height

2.70 m

Heaviest Single Piece

45.00 kg

(Total) Weight

255.00 kg

Free Height of Fall

0.40 m

Platform Heights

0.40 m


Foundation 1

4 pieces - 0.40 x 0.40 x 0.40 m volume: 0.07 m3

Foundation 2


Foundation 3


Foundation 4


Foundation 5


Foundation 6



Number of Installers

2 pers.

Assembly Time

1 h

Assembly Details

Assembly time 2 fitters 1 hour each (without foundation creation)

Technical Data

Technical data
Floor area: 1.45 x 1.45 m
Minimum space: 4.45 x 4.45 m (19 m²)
Total height: 2.70 m
Platform height: 0.40 m
Weight: 45 kg, heaviest individual part,
255 kg in total

posts Support posts made of stainless steel tube Ø 120 mm covered with non-detachable post caps made of stainless steel.

floor Platform floor made of boards, 30 mm thick and all-round square timber beams 45 x 100 mm. The dried robinia lumber is planed, chamfered and free from rotten branches. Non-positive floor fastening thanks to special stainless steel brackets with a continuous bolt connection.
Profiled stainless steel sheet.

Attachment parts
– vertical handles as a climbing aid made of stainless steel tube, Ø 33.7 x 2 mm
– tent roof, inclination 45 °, made of highly weather-resistant HPL laminate board, 13 mm, attachment to the roof frame made of stainless steel tube Ø 33.7 x 2 mm, with hood

Water pump
suction pipe connection 1 ¼ inch (pipe diameter at least ¾ inch), welded stainless steel construction, encapsulated pump housing, pump mechanics with roller and slide bearings, upper pump housing with handle must be removed e.g. during the frost period, sealing cover (“wintering plate”) for the remaining pump base is included .

Metal components: stainless steel.
The robinia wood is provided with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment reduces cracking.

Please note:
When connecting the water pump to a pressurized water line, the K&K valve combination (Art.No. 0-33190-000) is required.

If the water supply is intended to be temporarily interrupted (timer or similar), a negative pressure builds up in the line system when the pump continues to operate, which leads to the pump handle kicking back.
It is therefore imperative to prevent actuation of the pump handle (for example by using the pump lock item number 1040639).

In doing so, also observe the general data specified in the assembly instructions (distances, diameter of the lines, etc.); You can get these on request from K&K or directly as a PDF from our website at www.kaiser-kuehne-play.com.

Foundations (on site)
4 pcs. 0.40 x 0.40 x 0.40 m
Amount of concrete: 0.26 m³

Free fall
0.40 m
