0-40224-002

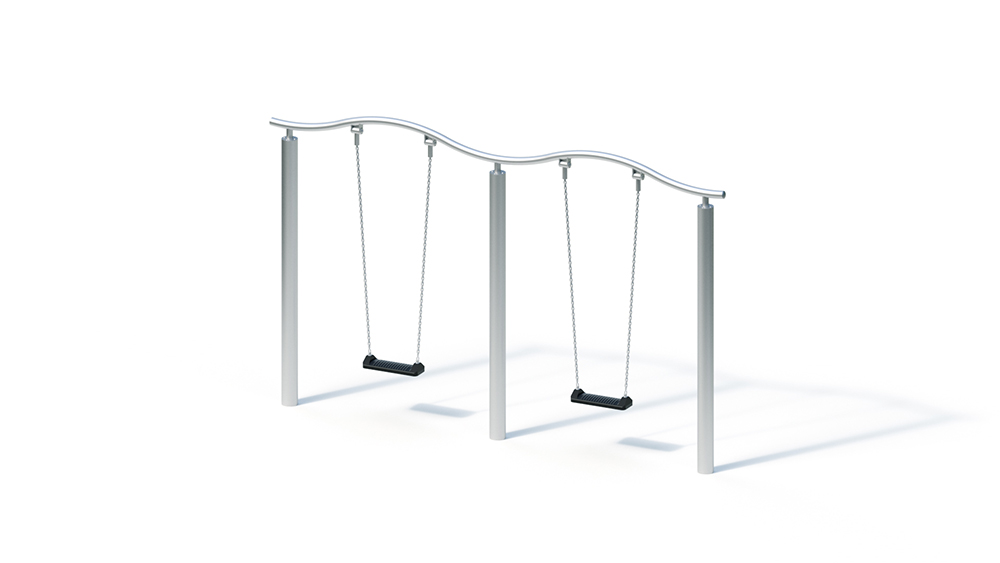

Pole swing (2.20)

Key Attributes

Age Group

4+

Area of Use

public playgrounds

Activity

Swings

Suitable for

Suitable for
children from 4 years,
public playgrounds, etc.,
exercise activities.

Techincal Specifications

Lifting Device

-

Total Length

-

Total Width

-

Total Height

2.34 m

Minimum Space Length

7.65 m

Minimum Space Width

3.75 m

Minimum Space Height

2.34 m

Heaviest Single Piece

29.00 kg

(Total) Weight

135.00 kg

Free Height of Fall

1.35 m

Platform Heights

-

Foundations

Foundation 1

3 pieces - 1.00 x 0.80 x 0.50 m volume: 0.40 m3

Foundation 2

-

Foundation 3

-

Foundation 4

-

Foundation 5

-

Foundation 6

-

Assembly

Number of Installers

2 pers.

Assembly Time

2 h

Assembly Details

Installation time 2 fitters each 1.5 hours (without foundation creation ) Concrete quantity: 1.20 m³

Technical Data

Technical data
Minimum space: 3.75 x 7.65 m (27 m²)
Swing height: 2.20 m
Weight: 29 kg heaviest single part
135 kg in total

– Stand post made of stainless steel, Ø 12 cm
– Swing support: stainless steel tube , Ø 60 mm
– Swing axis made of stainless steel with slide bearings, including swivel
– Safety swing seat made of rubber with dimensionally stable aluminum insert and complete single-point
suspension – Matching toddler seat (Item No. 15818) can be used against Supplied at extra cost

Foundations (on site)
3 pcs. 1.00 x 0.80 x 0.50 m

Free fall height
1.35 m
