0-40204-001

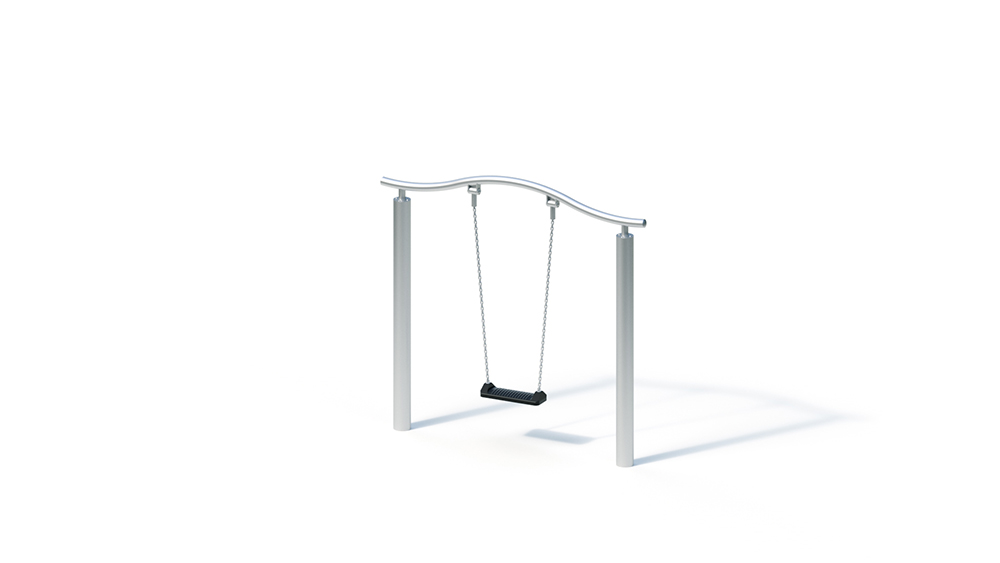

Pole swing (1.80)

Key Attributes

Age Group

3+

Area of Use

public playgrounds

Activity

Swings

Suitable for

Suitable for
children from 3 years,
public playgrounds, etc.,
exercise activities

Techincal Specifications

Lifting Device

-

Total Length

-

Total Width

-

Total Height

1.94 m

Minimum Space Length

7.00 m

Minimum Space Width

2.05 m

Minimum Space Height

1.94 m

Heaviest Single Piece

25.00 kg

(Total) Weight

80.00 kg

Free Height of Fall

1.10 m

Platform Heights

-

Foundations

Foundation 1

2 pieces - 1.00 x 0.80 x 0.50 m volume: 0.40 m3

Foundation 2

-

Foundation 3

-

Foundation 4

-

Foundation 5

-

Foundation 6

-

Assembly

Number of Installers

2 pers.

Assembly Time

2 h

Assembly Details

Installation time 2 fitters each 1.5 hours (without foundation creation ) Concrete quantity: 0.80 m³

Technical Data

Technical data
Minimum space: 2.05 x 7.00 m (13 m²)
Swing height: 1.80 m
Weight: 25 kg heaviest single part
80 kg in total

– Post made of stainless steel tube, Ø 120 x 3 mm
– Swing carrier made of stainless steel tube , Ø 60.3 x 2.9 mm
– Swing axis made of stainless steel with slide bearings, including swivel
– Safety swing seat made of rubber with dimensionally stable aluminum insert and seamless single-point suspension
– Matching toddler seat (Art No. 15818) can be delivered at an extra charge

Foundations (on site)
2 pcs. 1.00 x 0.80 x 0.50 m

Free fall height
1.10 m
