0-40206-001

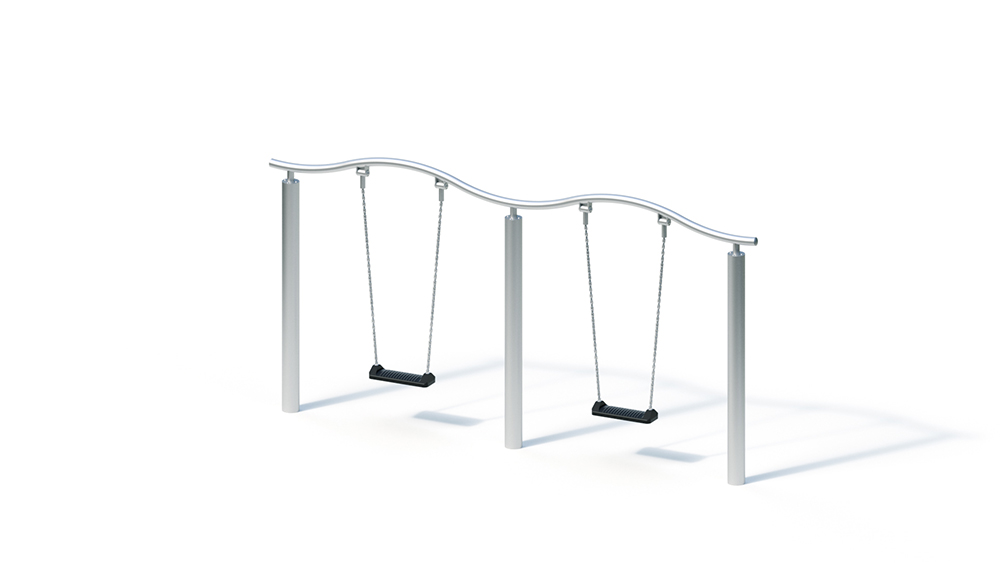

Pole swing (1.80)

Key Attributes

Age Group

3+

Area of Use

public playgrounds

Activity

Swings

Suitable for

Suitable for
children from 3 years,
public playgrounds, etc.,
exercise activities

Techincal Specifications

Lifting Device

-

Total Length

-

Total Width

-

Total Height

1.94 m

Minimum Space Length

7.00 m

Minimum Space Width

3.75 m

Minimum Space Height

1.94 m

Heaviest Single Piece

32.00 kg

(Total) Weight

125.00 kg

Free Height of Fall

1.10 m

Platform Heights

-

Foundations

Foundation 1

3 pieces - 1.00 x 0.80 x 0.50 m volume: 0.40 m3

Foundation 2

-

Foundation 3

-

Foundation 4

-

Foundation 5

-

Foundation 6

-

Assembly

Number of Installers

2 pers.

Assembly Time

2 h

Assembly Details

Assembly time 2 fitters each 1.5 hours (without foundation creation)

Technical Data

Technical data
Minimum space: 3.75 x 7.00 m (25 m²)
Swing height: 1.80 m
Weight: 25 kg heaviest single part
125 kg in total

– Support posts made of stainless steel, Ø 120 mm
– Swing carrier made of stainless steel tube , Ø 60.3 x 3 mm
– Swing axis made of stainless steel with slide bearings, including swivel
– Safety swing seat made of rubber with dimensionally stable aluminum insert and complete single-point
suspension – Matching toddler seat (Item No. 15818 ) can be delivered at an additional cost

Foundations (on site)
3 pcs. 1.00 x 0.80 x 0.50 m
amount of concrete: 1.20 m³

Free fall height
1.10 m
