Playground “Reading Adventure”

Playground “Reading Adventure”

TEXT:

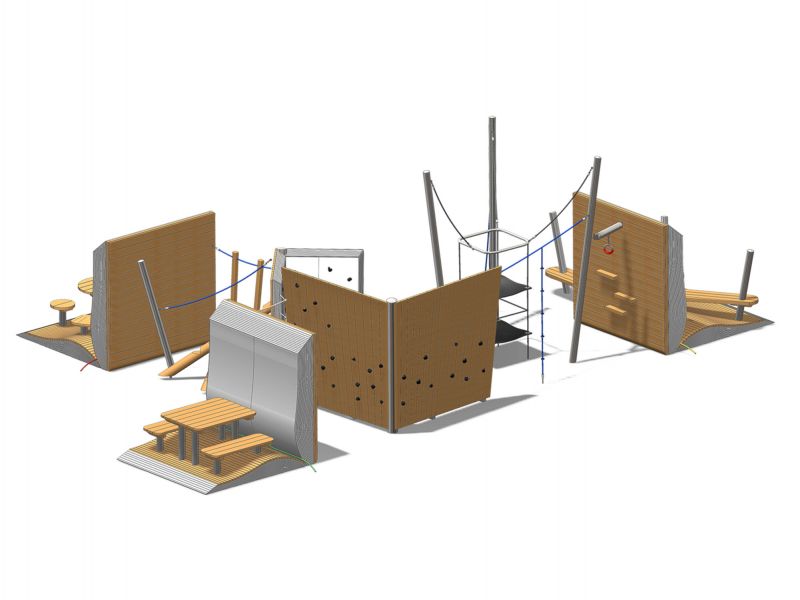

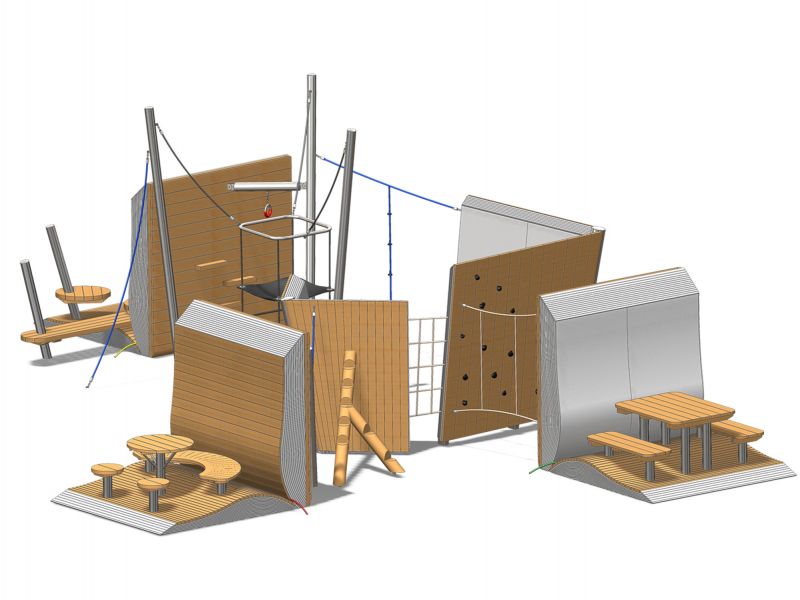

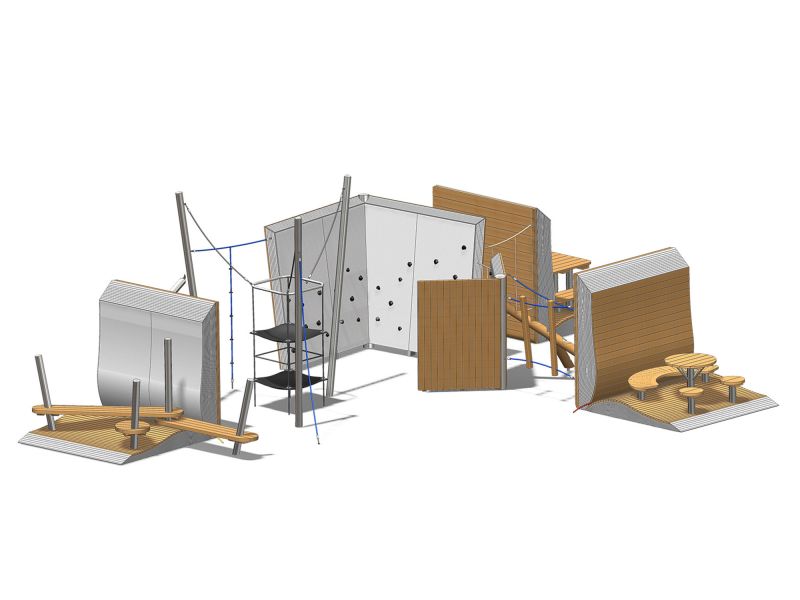

Play construction >>Reading Adventure<<
Order-No.: SK-190208-41
Posts made of stainless steel
wood: robinia

+ 1 "book" with seating arrangement "Rustikal", LxWxH approx. 200x200x200 cm
++ 1 open book, approx. 90 ° creates 1 seating terrace with back wall
++ stainless steel substructure
++ outside of the book made of HPL with book title and author according to specifications
++ inside of the book (back wall) made of HPL, color: egg shells, with milled text according to specifications, up to approx. 500 characters
++ inside of the book (terrace) made of robinia
++ 1 table and 2 benches without backrest, each with 2 stainless steel posts, length approx. 200 cm
++ 1 book block amde of HPL, veneered, color: egg shells, with individual milled pages
++ 1 bookmark made of Hercules rope

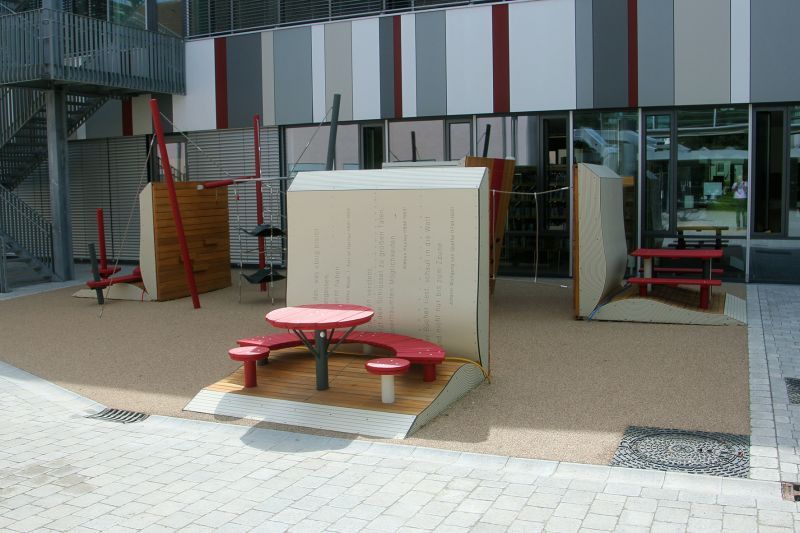

+ 1 "book" with seating arrangement "Half-round", LxWxH approx. 200x200x200 cm
++ 1 open book, approx. 90 ° creates 1 seating terrace with back wall
++ Stainless steel substructure
++ outside of the book made of HPL with book title and author according to specifications
++ inside of the book (back wall) made of HPL, with milled text according to specifications, up to approx. 120 characters
++ inside of the book (terrace) made of robinia
++ 1 seating arrangement "Half-round" with
+++ 6 posts made of stainless steel
+++ 2 round seats
+++ 1 round table
+++ 1 semicircular, arched bench without backrest
++ 1 book block made of HPL, veneered, color: egg shells, with individual milled pages
++ 1 bookmark made of Hercules rope

+ 1 "book" with seating arrangement "Stelzensitz", LxWxH approx. 200x200x200 cm
++ 1 open book, approx. 90 ° creates 1 seating terrace with back wall
++ stainless steel substructure
++ outside of the book made of HPL with book title and author according to specifications and climbing supports
++ inside of the book (back wall) made of HPL, color: egg shells, with milled text according to specifications, up to approx. 500 characters
++ inside of the book (terrace) made of robinia
++ 1 stilt seat, large, with
+++ 6 inclined posts made of stainless steel
+++ 5 seats, PH 40 / 42cm
++ 3 stilts, small with each
+++ 1 inclined post made of stainless steel
+++ 1 round seat, height 40cm
++ 1 HPL book block, veneered, color: egg shells, with individual milled pages
++ 1 bookmark made of Hercules rope

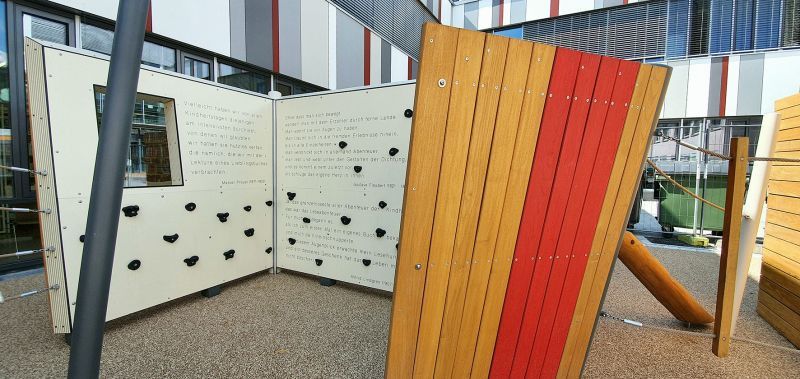

+ 1 "climbing book", small, page format (HxW) approx. 150×100 cm
+ 1 book opened at right angles, standing inclined
++ stainless steel substructure
++ outside of the book made of HPL with book title and author according to specifications
++ inside of the book made of HPL, with milled text according to specifications, up to approx. 500 characters and climbing grips made of synthetic resin, color: black
++ 1 book block made of HPL, veneered, color: egg shells, with individual milled pages
++ 1 decorated book spine

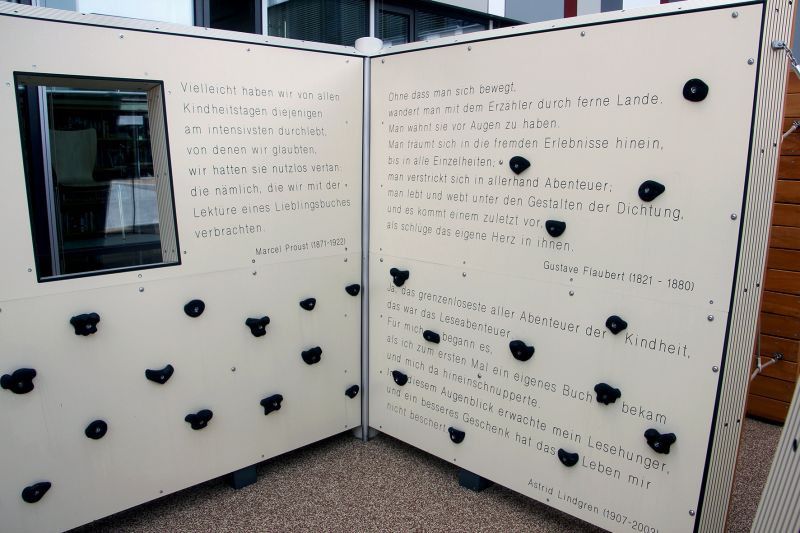

+ 1 "climbing book", large, page format (HxW) approx. 200×200 cm
+ 1 book opened at right angles, standing inclined
++ stainless steel substructure
++ outside of the book made of HPL with book title and author according to specifications, 1 side with climbing grips made of synthetic resin, color: black
++ inside of the book made of HPL, with milled text according to specifications, up to approx. 1000 characters and climbing grips made of synthetic resin, color: black
++ 1 book block made of HPL, veneered, color: egg shells, with individual milled pages
++ 1 decorated book spine
+ 1 rope harp made of Hercules rope with strings made of natural robinia wood, length up to max. approx. 150 cm
+ 2 balancing beams length approx. max. 100cm / 200cm made of natural robinia wood with step supports and 2 ropes made of Hercules rope on 1 post each, diagonally
+ 1 climbing net made of Hercules rope, approx. 150 x 150 cm between the climbing books, twisted, mesh size approx. 30 cm x 30 cm
+ 1 rope harp made of Hercules rope, length up to max. approx. 150 cm
+ 1 climbing rope made of Hercules rope with step supports, black, height approx. 200 cm
+ 1 pair of rubber seats made of PAK-free conveyor belt rubber, color: black, on 3 stainless steel posts, inclined
+ 1 dangle bar made of stainless steel with Roman rings, length up to max. approx. 200 cm

All ropes from Hercules rope, optionally in natural, blue, green, yellow or black.
The copyrights for all texts must be cleared by customer.

Made in Germany!
All support posts made of stainless steel tubes ø101,6mm.
Free post heads with succinctly welded stainless steel caps.
All stainless steel surfaces are radiated with glass marbles according to environmental protection rules.
All wooden parts made of Robinia, planed and chamfered. All wooden parts are untreated.
Connection point net/rope with support posts through specifically formed stainless steel fork and tensible stainless steel chain.
Nets made of Hercules rope.
All connecting parts made of stainless steel or galvanized. Use of self-locking nuts only.

Drying cracks are normal in all native hard woods, also after appropriate storage and professional treatment. Therefore drying cracks do not justify a warranty claim. (cf supplementary sheet to the German Institute for Standardization EN 1176, Note on 4.2.7.6)

Liefernachweis / Hersteller:
Spiel-Bau GmbH
Alte Weinberge 21
14776 Brandenburg an der Havel
FON: 03381 26140
FAX: 03381 261418
